제품 개요

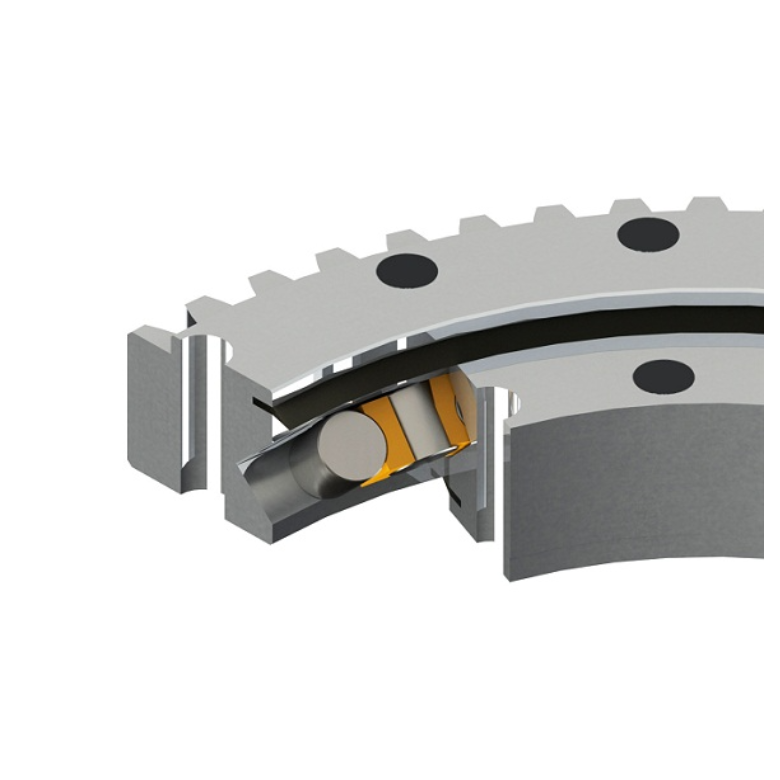

Crossed-roller slewing bearing with 90° roller arrangement for high rigidity and positioning accuracy.
- 외경
- 300 – 3116 mm
- 내경
- 219 – 2808 mm
- 높이
- 52 – 164 mm
- 축 하중
- 104 – 1980 kN
- 기어 유형
- No gear / internal gear / external gear
적용 분야
- Robotics and manipulators
- Machine tools
- Industrial turntables
- Precision positioning equipment
주요 이점
- Crossed roller raceway for high stiffness and accuracy
- Handles radial, axial, and moment loads in a compact section
- Rolling element diameter about 25 – 50 mm
- Rated load range about 104 – 1980 kN (model-dependent)
- Gearless, internal-gear, and external-gear options
기술 사양
| Bearing type | Single-row crossed roller slewing bearing |
|---|---|
| 외경 | 300 – 3116 mm |
| 내경 | 219 – 2808 mm |
| 높이 | 52 – 164 mm |
| 기어 유형 | No gear / internal gear / external gear |
| Module | 4.5 – 20 |
| 잇수 | 60 – 187 |
| 축 하중 | 104 – 1980 kN |
| Material | 42CrMo / 50Mn / C45 |
