SLA07 vérin linéaire 8000N

Overview
Our high-performance linear actuator is engineered for a variety of applications, offering robust and reliable performance. With a powerful motor output of 60W, this actuator provides a maximum load capacity of 8000N and speeds up to 36mm/s. Designed with advanced features and built to last, it’s an ideal choice for electric therapy tables, electric sofas, electric booth lifting rods, and more.

Key Features
High Load Capacity: Supports up to 8000N, ensuring powerful and stable operation.
Variable Input Voltage: Compatible with both 12VDC and 24VDC inputs, providing flexibility for different applications.
Efficient Motor: Equipped with a 60W motor for high performance.
Fast Speed: Reaches speeds of up to 36mm/s, allowing for quick adjustments.
Customizable Stroke Length: Available in stroke lengths from 50mm to 800mm to meet specific application needs.
Built-in Limit Switch: Ensures precise control and safety.
Durable Construction: Made from high-quality materials for long-term use.
Low Noise Operation: Operates quieter than other electric actuators, ensuring a comfortable user experience.
Easy Installation: Simplifies maintenance and installation compared to hydraulic and pneumatic systems.

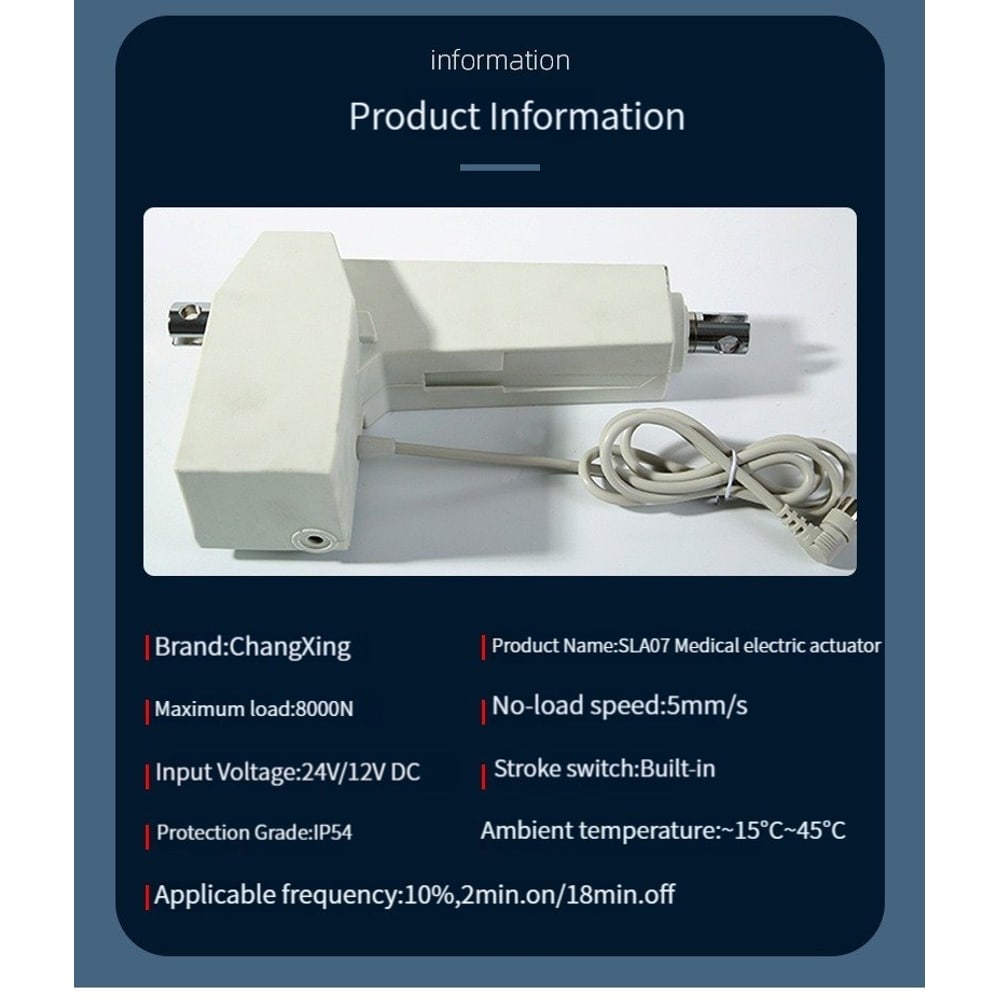

Specifications
Input Voltage: 12VDC / 24VDC
Max Load: 8000N
Maximum Current: 2.5 A (24V) / 5 A (12V)
Motor Output: 60W
Max Speed: 36mm/s
Stroke Length: 50-800mm (customizable)
Protection Level: IP54
Operating Temperature: -4°F to 145°F (-20°C to 65°C)
Color: Silver + Black
Limit Switch: Built-in
Screw Type: T type
Service Cycle: 10% duty cycle, up to 2 hours of continuous work
Product Certification: CE certified
Mechanical Life: More than 30,000 cycles
Applications
The high-performance linear actuator is suitable for a wide range of applications, including:

Electric Therapy Tables: Providing smooth and precise adjustments.
Electric Sofas: Ensuring comfortable and customizable seating positions.
Electric Booth Lifting Rods: Enhancing booth functionality with reliable lifting mechanisms.
Electric Lift Systems: Offering robust and efficient lifting solutions in various industrial settings.
Benefits
High Efficiency: Delivers excellent performance with minimal energy consumption.
Sturdy and Durable: Built to withstand rigorous use and extend service life.
Stable Operation: Ensures consistent and reliable performance.
Quiet Performance: Generates less noise compared to other electric actuators, enhancing user comfort.
Easy Installation: Streamlines the installation process, reducing time and effort compared to hydraulic and pneumatic systems.
Contact Us
For more information about our high-performance linear actuator and how it can benefit your applications, please contact us.
