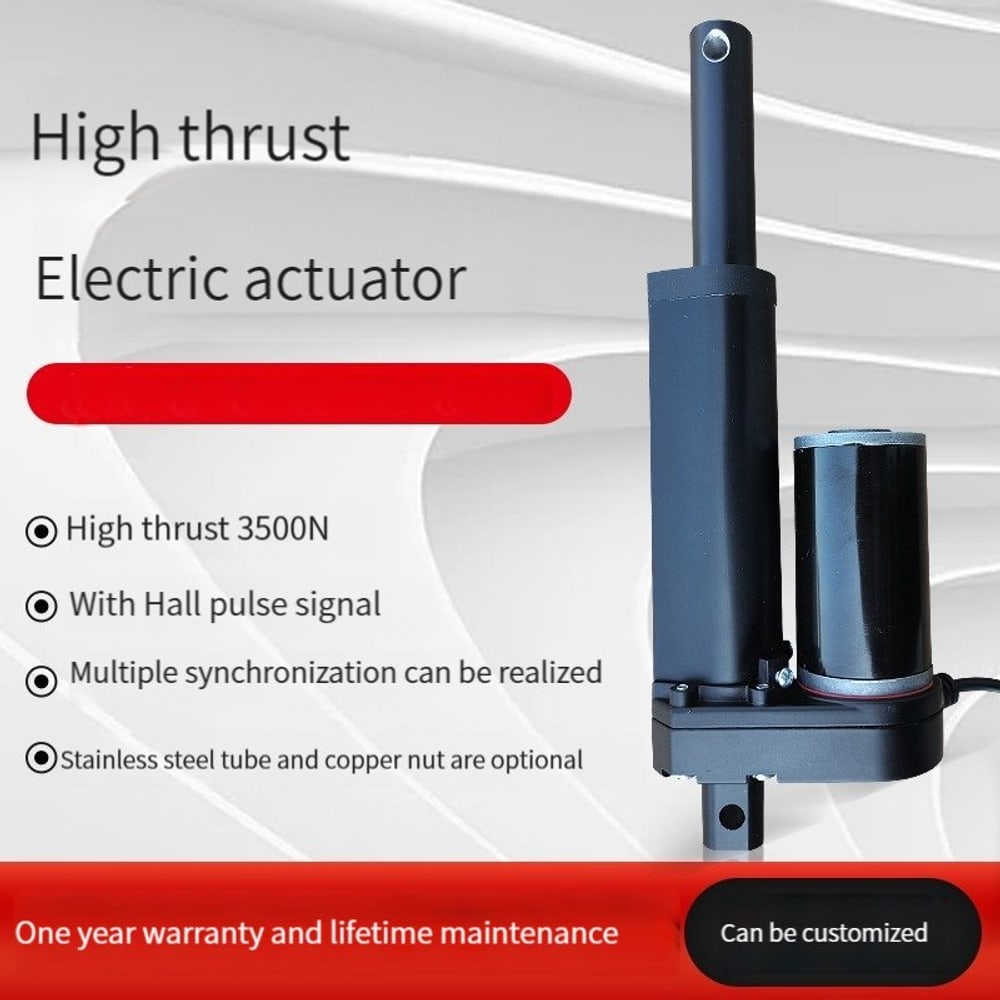

SLA06 vérin linéaire 3500N

Stroke (linear actuator telescopic distance) Voltage (linear actuator voltage environment 12V/24V does not affect the thrust and speed) Speed (you asked how much time to finish the stroke you need) Thrust (you need this linear actuator to push the number of kilograms of items) (Other special requirements can be individually linked to us, including the shape of the transformation, the transformation of key parts) Product parameters: Drive voltage: 12V/24VDC Maximum Thrust: 350KG/3500N Minimum installation dimensions (fully retracted around in the middle of the distance between the two holes): L1= Stroke+120 mm Maximum installation dimensions (fully extended around the middle of the distance of the two holes): L = 2xS(stroke)+120mm Ambient temperature :-26 to +65 degree Protection class: IP 54 Built-in limit switches(When completed stroke, linear actuator automatically stops!) Low noise design, noise levels below 42 db Work rule: 10%. Loading rated thrust need 10% work rule. In 20 minutes, 2minutes work 18minutes rest. If lower load can extend work time. Color: black 30MM/S 500N 25MM/S 700N 20MM/S 1000N 15MM/S 1500N 10MM/S 2500N 5MM/S 3000N 3MM/S 3500N 12V/24V electric putter motor, putter two ends have a stroke limit switch, telescopic rod running in the end or to the top, will automatically stop. The motor does not empty the burner. The push rod is a DC motor drive, screw drive. The telescopic rod can only be stretched without rotation. The motor is positive and negative. Such as positive extension, negative shrinkage. Change the direction of the rod can be changed. Note: bracket and controller is the need to purchase another, need friends please contact us. Product Features: promoting other objects to push, pull, up, down action Applications: TV lift massage table, electric bed, medical chair, electric equipment, micro-devices
