Vérin linéaire

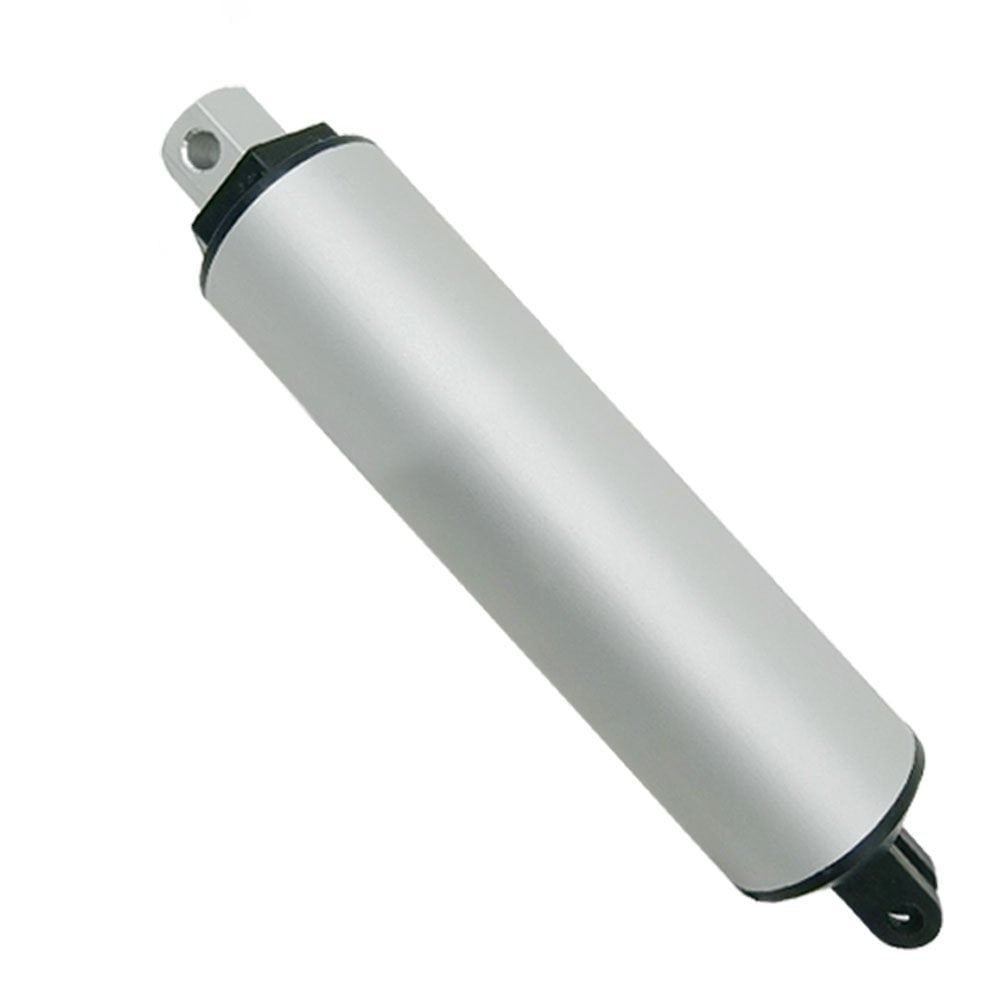

SLA04 vérin linéaire 200N

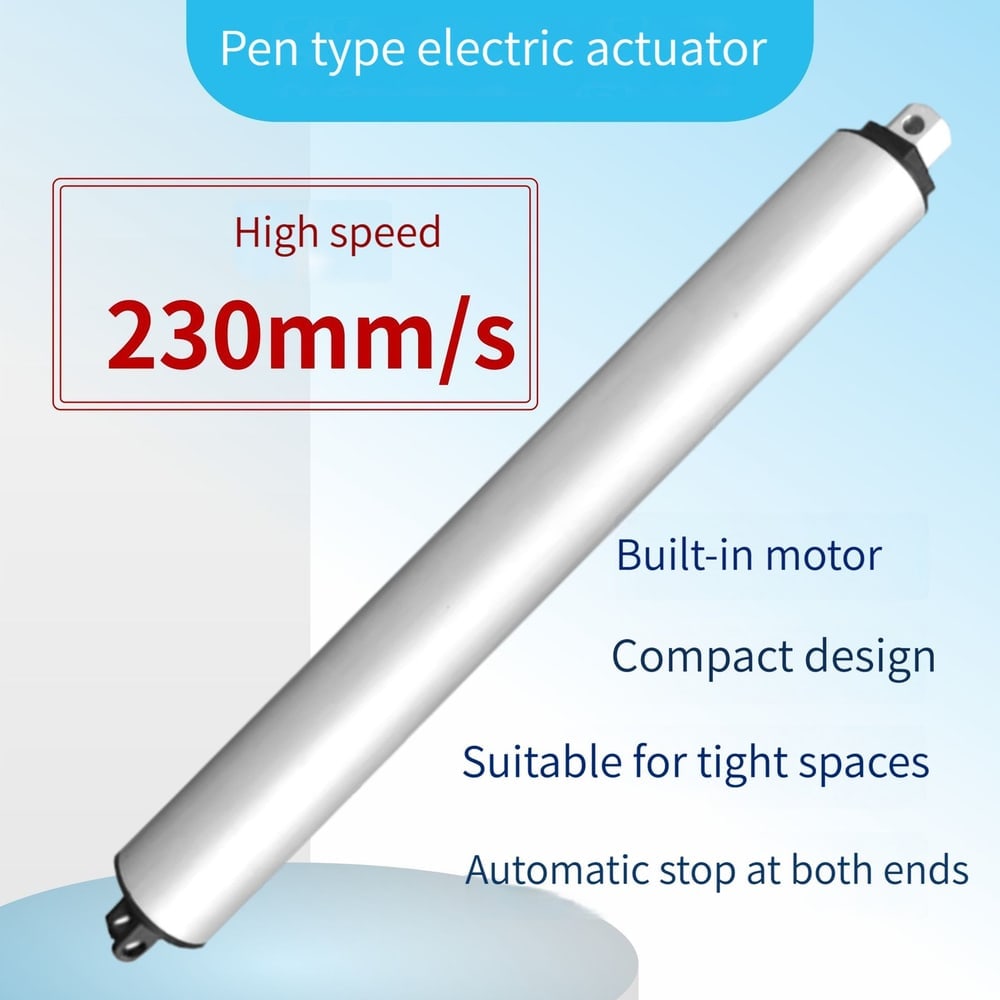

SLA04 vérin linéaire 200N is supplied by Elerover as a vérin linéaire for OEM and industrial motion projects. Key ratings include up to 200N load, 50mm-800mm stroke customized stroke. Request OEM customization for voltage, stroke, feedback and connectors.

Manufactured and supplied by Elerover — Vérin linéaire manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

Paramètres clés

stroke
50mm-800mm stroke customized
Max Load
200N
Max Speed
230mm/s
Limit switch
Built-in
Type
SLA04 linear actuator
cking
Locks in place after stopping without requiring power. Maintenance-Free
IP Grade
IP54
Screw Type
ACME screw
Request OEM Quote WhatsApp
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

Aperçu du produit

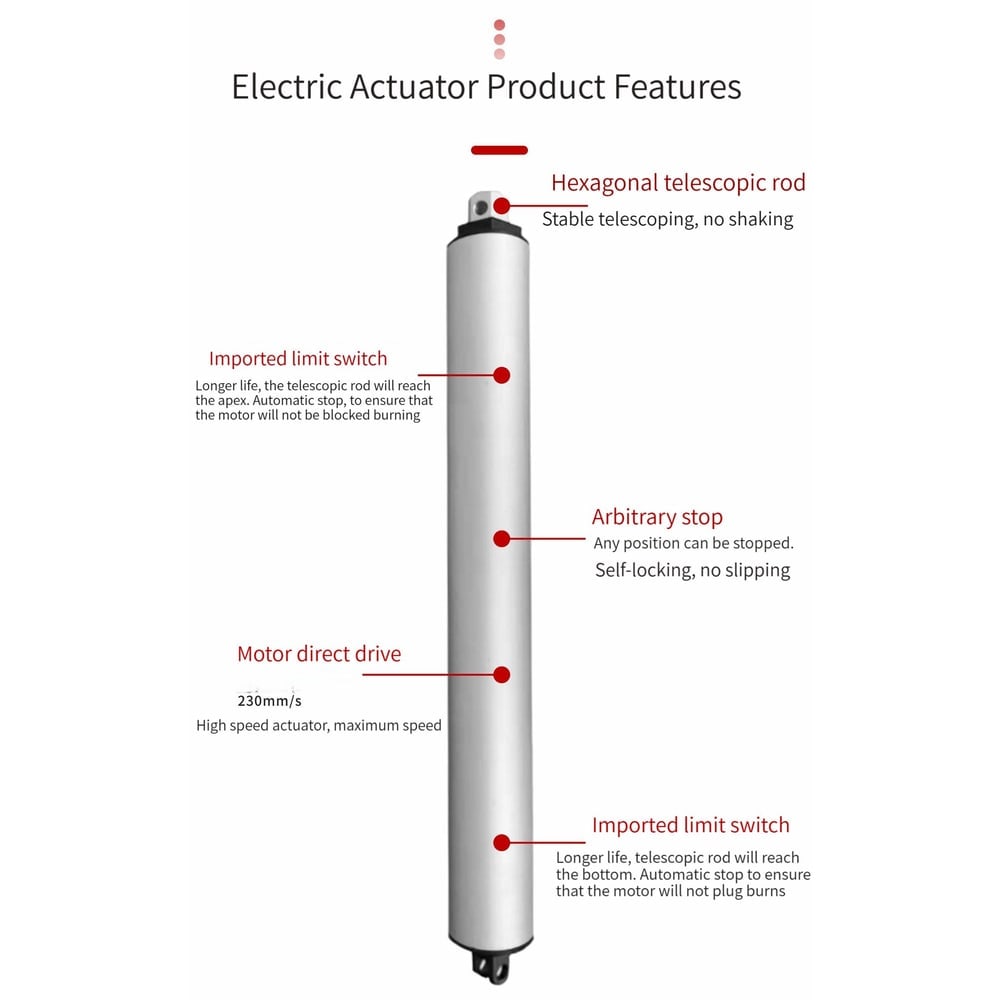

High-Quality Linear Actuators for Various Applications Enhance your projects with our premium linear actuators designed for versatility, reliability, and high performance in demanding environments. These actuators are built to deliver exceptional functionality and durability, making them ideal for a wide range of applications. Features: High-Quality Products and Services : We offer top-tier actuators along with exceptional customer support. Durable Metal Housing : Engineered to operate in extremely harsh environments. Wear-Resistant Gear : High-strength design for long-lasting performance. Corrosion-Resistant Construction : Made with aluminum alloy telescopic and outer tubes. Strong Thrust : Provides up to 200N / 20 Kgs / 40 lbs of force. Customizable Speed Options : Speed ranges from 45 mm/second to 230 mm/second. Customizable Stroke Options : Stroke lengths from 50 mm to 600 mm, with custom lengths available. Waterproof and Dustproof : Advanced technology ensures reliable operation. Low Power Consumption and Noise : Designed for efficient and quiet operation. Built-in Limit Switches : Automatically stops when the stroke rod reaches the limit position. Automatic Locking : Locks in place after stopping without requiring power. Maintenance-Free : Designed for long-term, hassle-free use. Specifications: Working Voltage Options : DC 12V or DC 24V (24V recommended for optimal performance) Customizable Stroke Range : 50 mm to 800 mm Speed Options : 45mm±5mm/s 80mm±10mm/s 140mm±15mm/s 230mm±25mm/s Max Load Capacity : 200N / 20 Kgs / 40 lbs at 45mm/s No-load Current : Approx. 1.5A Max Load Current : Approx. 3-6A Recommended Power Supply : Single actuator : 12V/10A or 24V/5A Two actuators : 12V/20A or 24V/10A Four actuators : 12V/50A or 24V/25A Outer Tube Diameter : 55mm Shaft Diameter : 28mm Mounting Holes Diameter : 8mm Material : Housing : Aluminum Alloy Stroke Rod : Aluminum Alloy Gear : Polymer Plastic Motor Type : Brushed DC Motor Duty Cycle : 20%, Max 2 mins continuo

Caractéristiques clés

  • Produits et services de haute qualité : vérins haut de gamme et support client exceptionnel.
  • Boîtier métallique durable : conçu pour environnements extrêmement exigeants.
  • Engrenage résistant à l’usure : conception haute résistance pour longue durée de vie.
  • Construction anticorrosion : tubes télescopiques et externes en alliage d’aluminium.
  • Forte poussée : jusqu’à 200N / 20 kg / 40 lbs.
  • Options de vitesse personnalisables : de 45 mm/s à 230 mm/s.
  • Options de course personnalisables : 50 mm à 600 mm, autres longueurs sur demande.
  • Étanche et anti-poussière : technologie avancée pour un fonctionnement fiable.
  • Faible consommation et bruit : fonctionnement efficace et silencieux.
  • Fins de course intégrés : arrêt automatique en fin de course.
  • Verrouillage automatique : verrouillage sans alimentation après arrêt.
  • Sans entretien : utilisation durable sans maintenance.

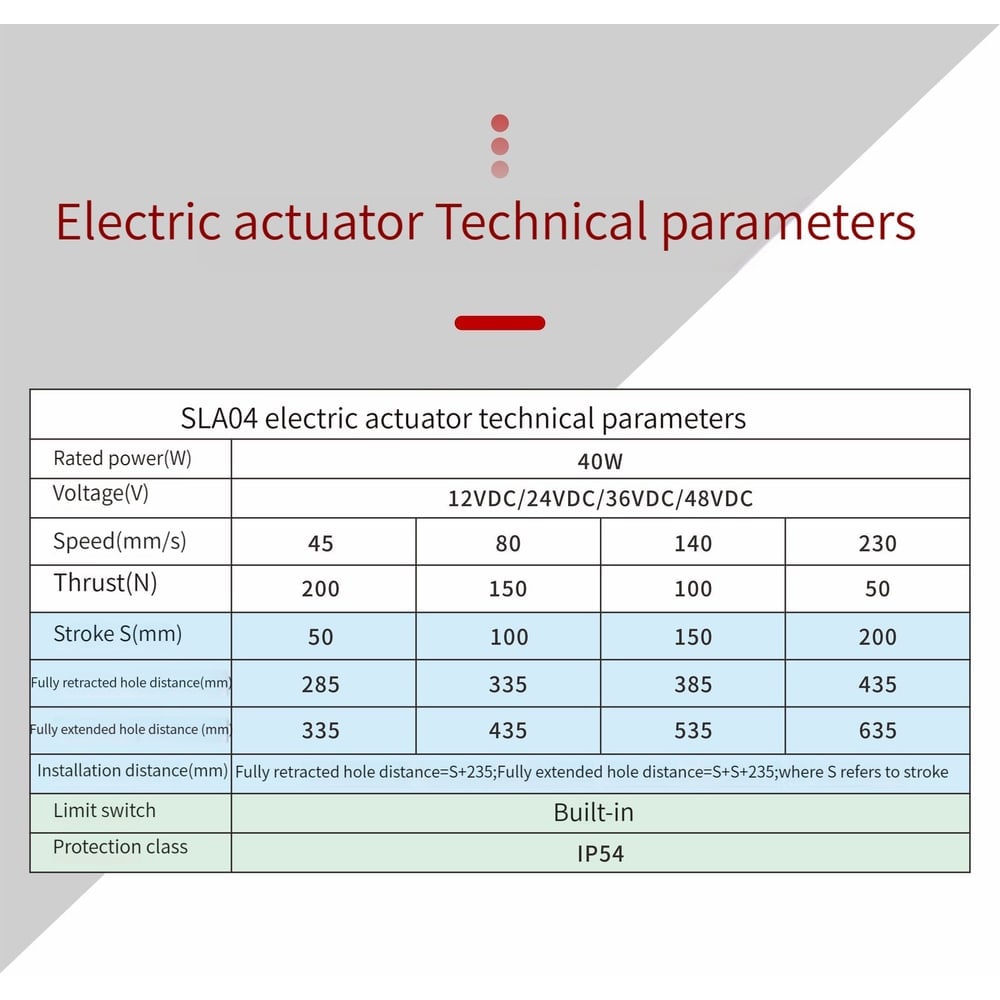

Spécifications techniques

Type SLA04 linear actuator
stroke 50mm-800mm stroke customized
Input voltage 12/24/36/48VDC
Max Speed 230mm/s
Max Load 200N
Limit switch Built-in
Feedback option Hall sensor
IP Grade IP54
Screw Type ACME screw
customer support. Durable Metal Housing Engineered to operate in extremely harsh environments. Wear-Resistant Gear
cking Locks in place after stopping without requiring power. Maintenance-Free
hassle-free use. Specifications Working Voltage Options

Applications

  • Produits et services de qualité : actionneurs haut de gamme et support client exceptionnel.
  • Boîtier métallique durable : conçu pour environnements extrêmement exigeants.
  • Engrenage résistant à l’usure : conception haute résistance pour une longue durée de vie.
  • Construction anticorrosion : tubes télescopiques et externes en alliage d’aluminium.
  • Forte poussée : jusqu’à 200N / 20 kg / 40 lbs.
  • Vitesses personnalisables : de 45 mm/s à 230 mm/s.

FAQ

Qu’est-ce que le SLA04 ?

Options de tension de fonctionnement : DC 12V ou DC 24V (24V recommandé). Plage de course personnalisable : 50 mm à 800 mm. Options de vitesse : 45mm±5m...

Elerover fabrique-t-il le SLA04 ?

Oui. Elerover est fabricant et fournisseur de vérin linéaire. Ce modèle propose des options OEM indiquées dans les données produit — indiquez le cycle de service et la quantité pour un devis usine.

Quelles sont les spécifications clés du SLA04 ?

Les valeurs issues des spécifications produit incluent tension 12/24/36/48VDC, charge 200N, course 50mm-800mm stroke customized. Consultez le tableau Spécifications techniques sur cette page.

Pour quelles applications le SLA04 est-il prévu ?

Applications typiques : Produits et services de qualité : actionneurs haut de gamme et support client exceptionnel., Boîtier métallique durable : conçu pour environnements extrêmement exigeants., Engrenage résistant à l’usure : conception haute résistance pour une longue durée de vie., Construction anticorrosion : tubes télescopiques et externes en alliage d’aluminium..

Comment demander un devis pour le SLA04 ?

Indiquez charge, course, tension, indice IP, cycle de service, quantité et options OEM via le formulaire de contact ou WhatsApp.

Détails supplémentaires

High-Quality Linear Actuators for Various Applications

Enhance your projects with our premium linear actuators designed for versatility, reliability, and high performance in demanding environments. These actuators are built to deliver exceptional functionality and durability, making them ideal for a wide range of applications.

  • High-Quality Products and Services: We offer top-tier actuators along with exceptional customer support.
  • Durable Metal Housing: Engineered to operate in extremely harsh environments.
  • Wear-Resistant Gear: High-strength design for long-lasting performance.
  • Corrosion-Resistant Construction: Made with aluminum alloy telescopic and outer tubes.
  • Strong Thrust: Provides up to 200N / 20 Kgs / 40 lbs of force.
  • Customizable Speed Options: Speed ranges from 45 mm/second to 230 mm/second.
  • Customizable Stroke Options: Stroke lengths from 50 mm to 600 mm, with custom lengths available.
  • Waterproof and Dustproof: Advanced technology ensures reliable operation.
  • Low Power Consumption and Noise: Designed for efficient and quiet operation.
  • Built-in Limit Switches: Automatically stops when the stroke rod reaches the limit position.
  • Automatic Locking: Locks in place after stopping without requiring power.
  • Maintenance-Free: Designed for long-term, hassle-free use.
  • Working Voltage Options: DC 12V or DC 24V (24V recommended for optimal performance)

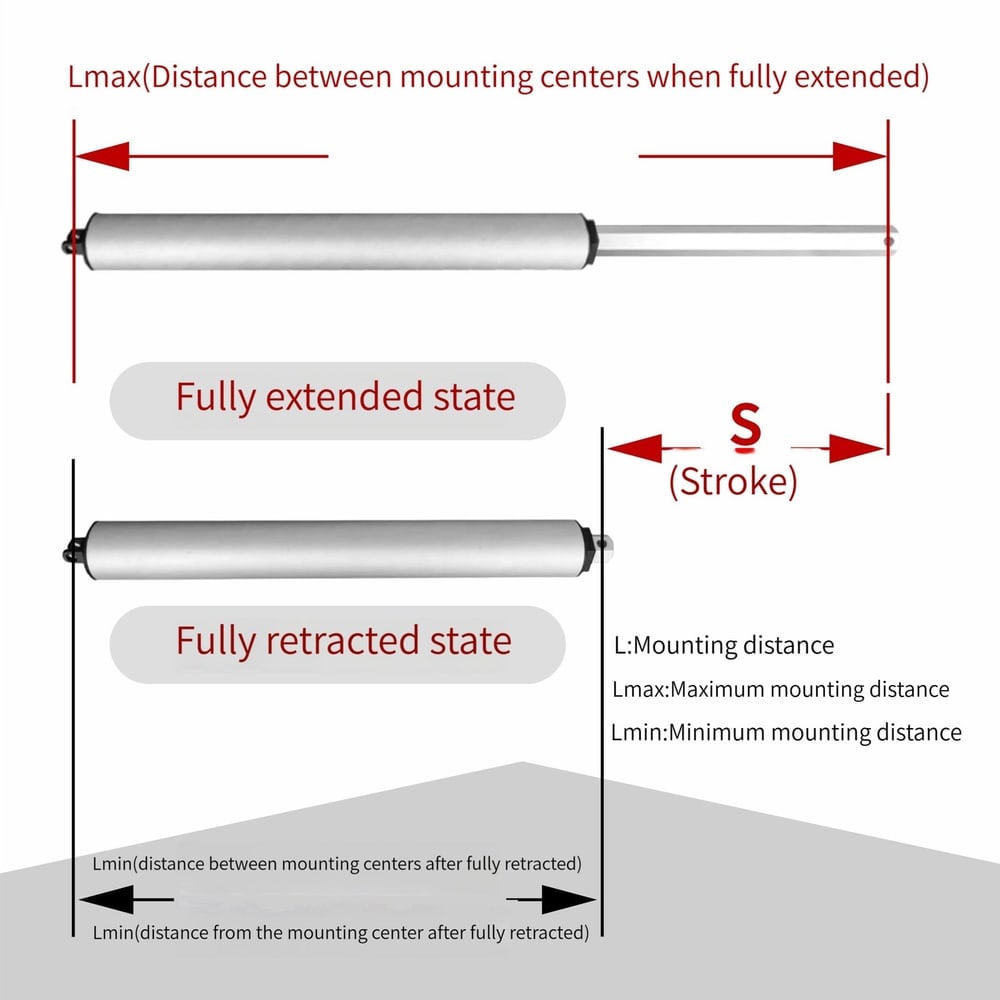

  • Customizable Stroke Range: 50 mm to 800 mm
  • Speed Options:
    • 45mm±5mm/s
    • 80mm±10mm/s
    • 140mm±15mm/s
    • 230mm±25mm/s
  • Max Load Capacity: 200N / 20 Kgs / 40 lbs at 45mm/s
  • No-load Current: Approx. 1.5A
  • Max Load Current: Approx. 3-6A
  • Recommended Power Supply:
    • Single actuator: 12V/10A or 24V/5A
    • Two actuators: 12V/20A or 24V/10A
    • Four actuators: 12V/50A or 24V/25A
  • Outer Tube Diameter: 55mm
  • Shaft Diameter: 28mm
  • Mounting Holes Diameter: 8mm
  • Material:
    • Housing: Aluminum Alloy
    • Stroke Rod: Aluminum Alloy
    • Gear: Polymer Plastic
  • Motor Type: Brushed DC Motor
  • Duty Cycle: 20%, Max 2 mins continuous use
  • Plug Standard: Ordinary Two-core Wire
  • Certifications: CE
  • Operating Temperature: -26℃ to 85℃
  • Operating Noise: Approx. 46dB~52dB
  • IP Rating: IP54
Type
SLA04 linear actuator
stroke
50mm-800mm stroke customized
Input voltage
12/24/36/48VDC
Max Speed
230mm/s
Max Load
200N
Limit switch
Built-in
Feedback option
Hall sensor
IP Grade
IP54
Screw Type
ACME screw

Fixed Bracket:

  • This linear actuator does not include fixed mounting brackets. Please contact us if you need them.
  • Each actuator requires two mounting brackets for installation.

Operation:

  • Extension: Connect to DC power supply to extend the stroke rod.
  • Retraction: Reverse the power supply polarity to retract the stroke rod.
  • Direction Control: Switch the polarity of the DC power supply to change the direction of movement.

Our linear actuators are ideal for various applications, including:

  • Doors and Windows
  • Cellars and Trapdoors
  • Solar Tracking Systems
  • Medical Devices
  • Agricultural Machinery
  • Vehicles and Ships
  • Elevator Platforms and Lifting Tables
  • TV Lifts
  • Robots
  • Cabinetries
  • Massage Sofas and Electric Beds
  • Medical Chairs and other Electrical Equipment

These actuators can perform multiple functions such as opening, closing, pushing, pulling, lifting, and descending devices. They are a superior alternative to hydraulic and pneumatic products, offering efficient power consumption and reliable performance.

Upgrade your systems with our high-quality linear actuators and experience enhanced functionality, efficiency, and durability.
