SLA024 vérin linéaire AC/DC 5000N pour ventilation agricole

1 / 5

Vérin linéaire

SLA024 vérin linéaire AC/DC 5000N pour ventilation agricole

Compatibilité d’alimentation polyvalente : le SLA024 prend en charge 24V DC, 48V DC, 120V AC et 230V AC, pour s’adapter à diverses installations...

Manufactured and supplied by Elerover — Vérin linéaire manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

Paramètres clés

Model
SLA024
Voltage
24V DC, 36V DC, 48V DC, 120V AC, 230V AC (Optional)
Stroke
50/ 100/ 150/ 200/ 250/ 300/ 350/ 400/ 450mm (Optional, 50-1200mm can be customized)
Duty Cycle
10%
Noise
<60db
IP Grade
IP65
Rated Speed
5000RPM
Installation
Bracket mounting, the installation size can be adjusted flexibly.
Request OEM Quote WhatsApp
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

Aperçu du produit

SLA024 Linear Actuator Model SLA024 Voltage 24V DC, 36V DC, 48V DC, 120V AC, 230V AC (Optional) Max. Load 5000N No-Load Speed 4.5mm/s Full-Load Speed 4mm/s Rated Speed 5000RPM Stroke 50/ 100/ 150/ 200/ 250/ 300/ 350/ 400/ 450mm (Optional, 50-1200mm can be customized) Duty Cycle 10% IP Grade IP65 Ambient Temperature -40℃ ~ +65℃ Installation Bracket mounting, the installation size can be adjusted flexibly. Potentiometer 1K Noise <60db Length of Cable 1.2m Weight 11kg Applications Ventilation system for agricultural livestock breeding Ideal for Farm Ventilation and Breeding Industry The SLA024 Linear Actuator is meticulously engineered for optimal performance in farm ventilation systems and the breeding industry. With a robust maximum load capacity of 5000N , this actuator ensures reliable and efficient operation under demanding conditions. Key Features: Versatile Power Supply Compatibility : The SLA024 supports a range of power supplies, including 24V DC , 48V DC , 120V AC , and 230V AC , making it adaptable to various setups. Optimized Speed : It offers a no-load speed of 4.5mm/s and a full-load speed of 4mm/s , providing efficient and consistent movement. Superior Protection : Designed with IP65 waterproof protection , the SLA024 is capable of operating in harsh environments, ensuring durability and longevity. Applications: Farm Ventilation Systems : Enhances air circulation and maintains optimal climate conditions for livestock. Breeding Industry : Provides precise control for automated systems, improving the efficiency of breeding operations. Benefits: High Load Capacity : Supports heavy loads up to 5000N, suitable for demanding agricultural applications. Reliable Performance : Consistent speed and robust design ensure smooth and reliable operation. Durability : Waterproof and built to withstand harsh environmental conditions, extending the lifespan of your equipment. Upgrade your farm ventilation and breeding systems with the SLA024 Linear Actuator, designed for

Caractéristiques clés

  • Compatibilité d’alimentation polyvalente : 24V DC, 48V DC, 120V AC et 230V AC.
  • Vitesse optimisée : 4,5mm/s à vide et 4mm/s en charge pour un mouvement régulier.
  • Protection supérieure : IP65 pour fonctionnement en environnements exigeants.
  • Systèmes de ventilation agricole : améliore la circulation d’air et le climat du bétail.
  • Industrie de l’élevage : contrôle précis pour systèmes automatisés.
  • Forte capacité de charge : jusqu’à 5000N pour applications agricoles exigeantes.
  • Performance fiable : vitesse constante et conception robuste.
  • Durabilité : étanche et conçu pour conditions environnementales sévères.

Spécifications techniques

Model SLA024
Voltage 24V DC, 36V DC, 48V DC, 120V AC, 230V AC (Optional)
Max. Load 5000N
No-Load Speed 4.5mm/s
Full-Load Speed 4mm/s
Rated Speed 5000RPM
Stroke 50/ 100/ 150/ 200/ 250/ 300/ 350/ 400/ 450mm (Optional, 50-1200mm can be customized)
Duty Cycle 10%
IP Grade IP65
Ambient Temperature -40℃ ~ +65℃
Installation Bracket mounting, the installation size can be adjusted flexibly.
Potentiometer 1K
Noise <60db
Length of Cable 1.2m
Weight 11kg
Applications Ventilation system for agricultural livestock breeding

Applications

  • Ventilation agricole : améliore la circulation d’air et maintient un climat optimal pour le bétail.
  • Élevage : contrôle précis pour systèmes automatisés, améliorant l’efficacité des opérations.

FAQ

Qu’est-ce que le SLA024 ?

Compatibilité d’alimentation polyvalente : le SLA024 prend en charge 24V DC, 48V DC, 120V AC et 230V AC, pour s’adapter à diverses installations...

Elerover fabrique-t-il le SLA024 ?

Oui. Elerover est fabricant et fournisseur de vérin linéaire. Ce modèle propose des options OEM indiquées dans les données produit — indiquez le cycle de service et la quantité pour un devis usine.

Quelles sont les spécifications clés du SLA024 ?

Les valeurs issues des spécifications produit incluent tension 24V DC, 36V DC, 48V DC, 120V AC, 230V AC (Optional), charge 5000N, course 50/ 100/ 150/ 200/ 250/ 300/ 350/ 400/ 450mm (Optional, 50-1200mm can be customized). Consultez le tableau Spécifications techniques sur cette page.

Pour quelles applications le SLA024 est-il prévu ?

Applications typiques : Ventilation agricole : améliore la circulation d’air et maintient un climat optimal pour le bétail., Élevage : contrôle précis pour systèmes automatisés, améliorant l’efficacité des opérations..

Comment demander un devis pour le SLA024 ?

Indiquez charge, course, tension, indice IP, cycle de service, quantité et options OEM via le formulaire de contact ou WhatsApp.

Détails supplémentaires

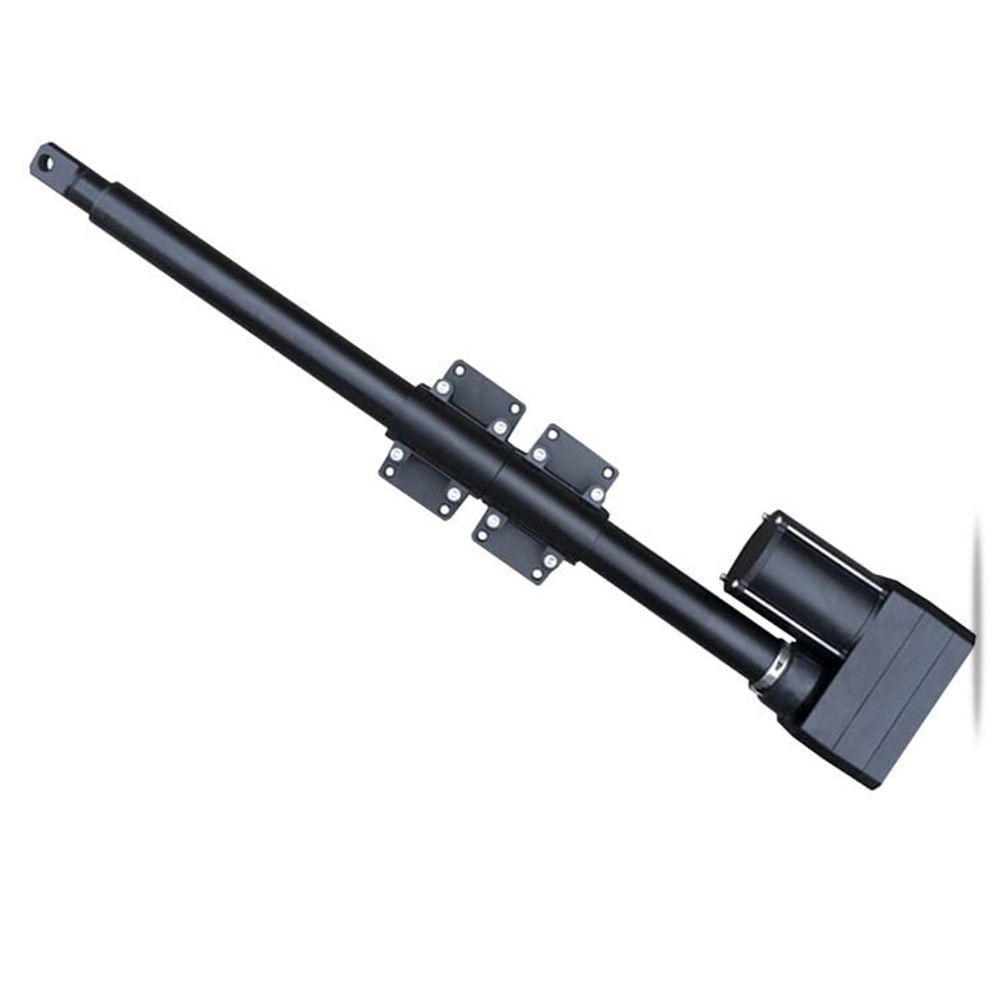

SLA024 Linear Actuator

Model SLA024
Voltage 24V DC, 36V DC, 48V DC, 120V AC, 230V AC (Optional)
Max. Load 5000N
No-Load Speed 4.5mm/s
Full-Load Speed 4mm/s
Rated Speed 5000RPM
Stroke 50/ 100/ 150/ 200/ 250/ 300/ 350/ 400/ 450mm (Optional, 50-1200mm can be customized)
Duty Cycle 10%
IP Grade IP65
Ambient Temperature -40℃ ~ +65℃
Installation Bracket mounting, the installation size can be adjusted flexibly.
Potentiometer 1K
Noise <60db
Length of Cable 1.2m
Weight 11kg
Applications Ventilation system for agricultural livestock breeding

Ideal for Farm Ventilation and Breeding Industry

The SLA024 Linear Actuator is meticulously engineered for optimal performance in farm ventilation systems and the breeding industry. With a robust maximum load capacity of 5000N, this actuator ensures reliable and efficient operation under demanding conditions.

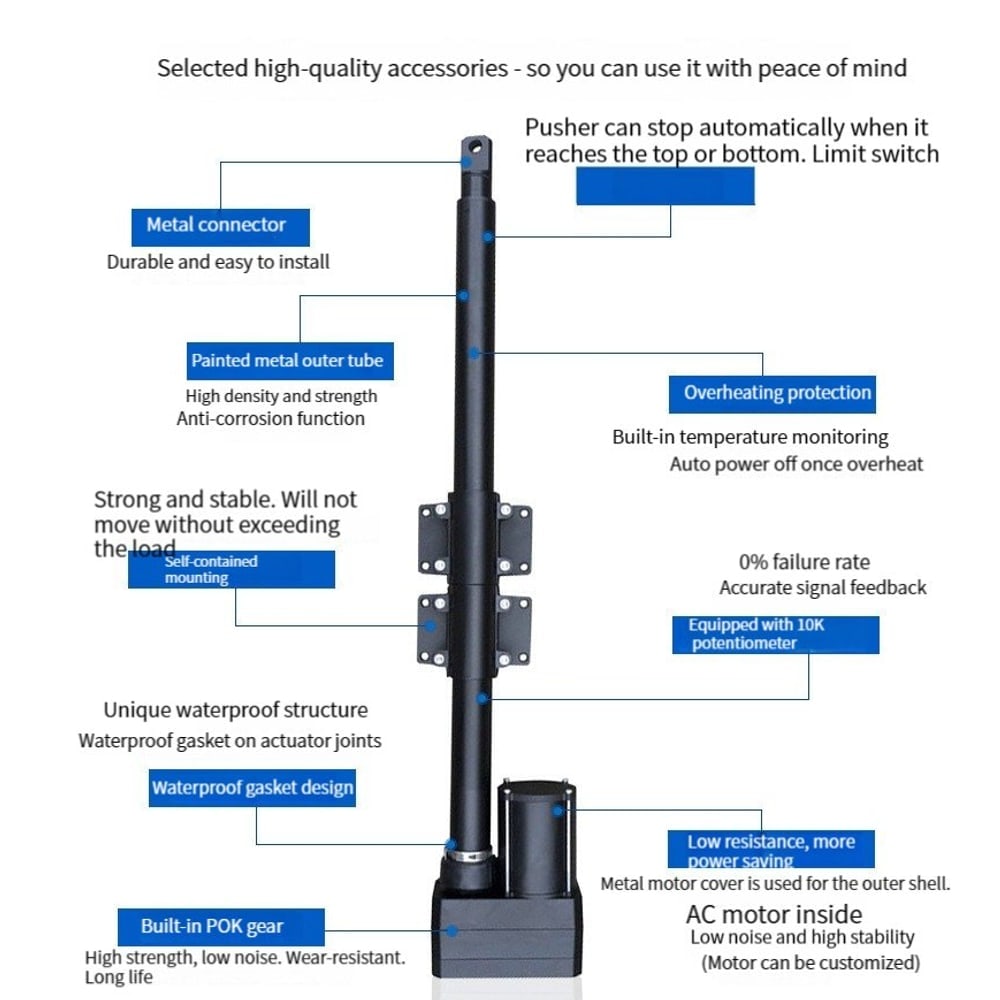

Linear Actuator - SLA024 5000N AC/DC linear actuator for Farm Ventilation - Detail view 1

  • Versatile Power Supply Compatibility: The SLA024 supports a range of power supplies, including 24V DC, 48V DC, 120V AC, and 230V AC, making it adaptable to various setups.
  • Optimized Speed: It offers a no-load speed of 4.5mm/s and a full-load speed of 4mm/s, providing efficient and consistent movement.
  • Superior Protection: Designed with IP65 waterproof protection, the SLA024 is capable of operating in harsh environments, ensuring durability and longevity.
  • Farm Ventilation Systems: Enhances air circulation and maintains optimal climate conditions for livestock.
  • Breeding Industry: Provides precise control for automated systems, improving the efficiency of breeding operations.

Benefits:

  • High Load Capacity: Supports heavy loads up to 5000N, suitable for demanding agricultural applications.
  • Reliable Performance: Consistent speed and robust design ensure smooth and reliable operation.
  • Durability: Waterproof and built to withstand harsh environmental conditions, extending the lifespan of your equipment.

Upgrade your farm ventilation and breeding systems with the SLA024 Linear Actuator, designed for high performance and reliability. Contact us today to learn more about how the SLA024 can enhance your agricultural operations.

Make sure to include the SLA024 Linear Actuator in your next equipment upgrade for unmatched efficiency and durability in farm ventilation and breeding industry applications.
