SLA019 vérin linéaire 2500N

1 / 5

Vérin linéaire

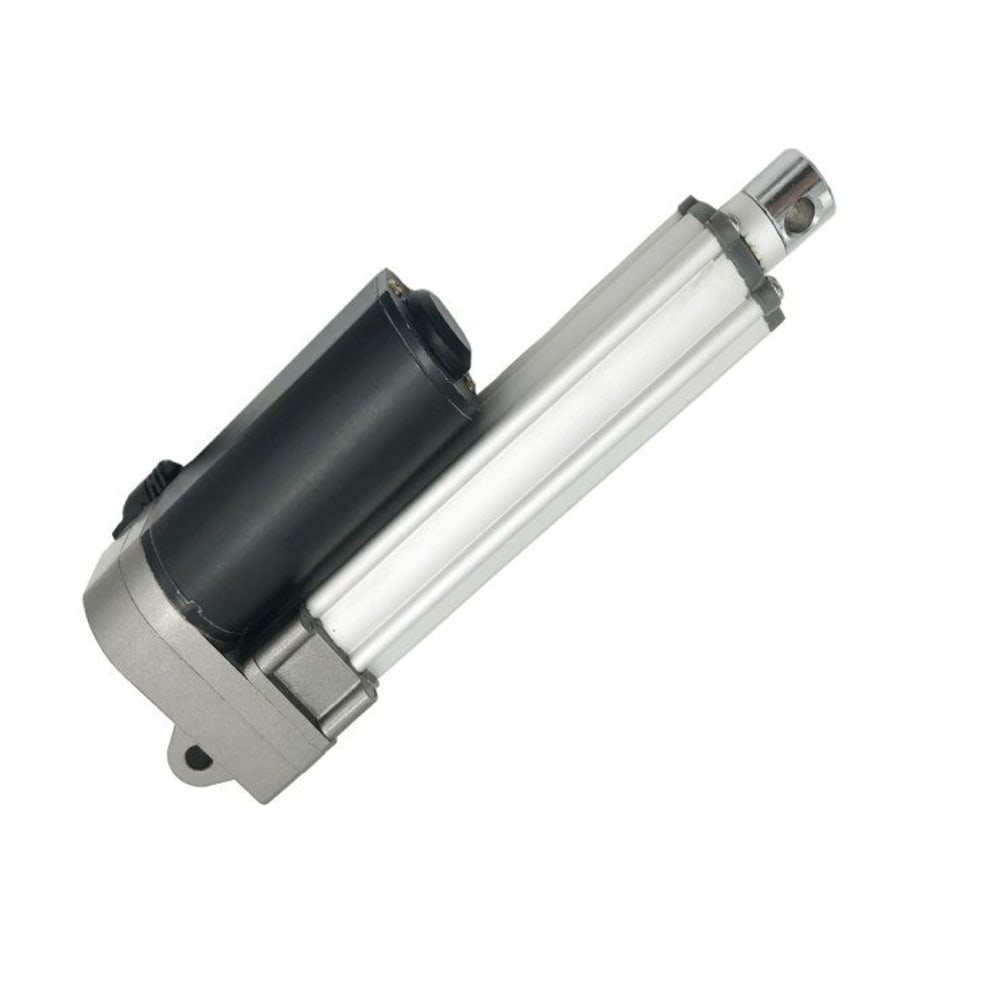

SLA019 vérin linéaire 2500N

The SLA019 is an Elerover vérin linéaire for OEM and industrial motion projects. Key ratings include 12V / 24V DC operation, up to 2500N load. Request OEM customization for voltage, stroke, feedback and connectors.

Manufactured and supplied by Elerover — Vérin linéaire manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

Paramètres clés

Model
SLA019
Working Voltage
12V / 24V DC
Max Load
2500N
Motor Type
Brushed DC
Built-in Limit Switch
Yes
Applications
Industrial and agricultural automation
Request OEM Quote WhatsApp
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

Aperçu du produit

The SLA019 2500N electric linear actuator bridges light and heavy industrial duty, delivering up to 2500N thrust for agricultural equipment, factory fixtures and OEM lift assists. Its brushed DC drive and robust gearbox are built for repetitive push/pull cycles on 12V or 24V systems.

Caractéristiques clés

  • Medium-duty electric linear actuator up to 2500N
  • 12V / 24V DC input for flexible system design
  • Built-in limit switches
  • Robust metal gearbox for reliable push/pull duty
  • Suitable for industrial and agricultural OEM use
  • Custom stroke and connector options

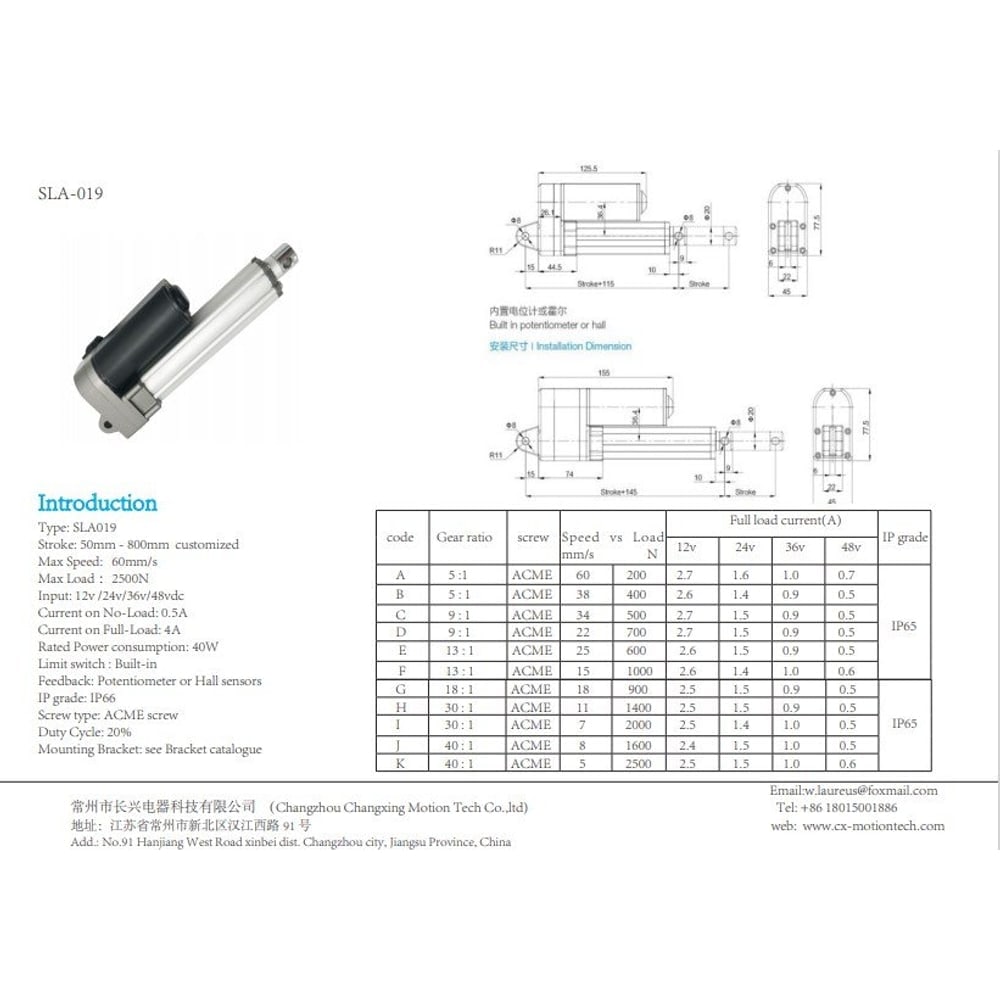

Spécifications techniques

Model SLA019
Max Load 2500N
Working Voltage 12V / 24V DC
Built-in Limit Switch Yes
Motor Type Brushed DC
Applications Industrial and agricultural automation

Applications

  • Industrial automation
  • Agricultural equipment
  • OEM lift systems

FAQ

Qu’est-ce que le SLA019 ?

Le SLA019 est un vérin linéaire Elerover pour projets industriels et OEM.

Elerover fabrique-t-il le SLA019 ?

Oui. Elerover est fabricant et fournisseur de vérin linéaire. Ce modèle propose des options OEM indiquées dans les données produit — indiquez le cycle de service et la quantité pour un devis usine.

Quelles sont les spécifications clés du SLA019 ?

Les valeurs issues des spécifications produit incluent tension 12V / 24V DC, charge 2500N. Consultez le tableau Spécifications techniques sur cette page.

Pour quelles applications le SLA019 est-il prévu ?

Applications typiques : Industrial automation, Agricultural equipment, OEM lift systems.

Comment demander un devis pour le SLA019 ?

Indiquez charge, course, tension, indice IP, cycle de service, quantité et options OEM via le formulaire de contact ou WhatsApp.

Détails supplémentaires

Linear Actuator

SLA019 2500N linear actuator

The SLA019 2500N electric linear actuator bridges light and heavy industrial duty, delivering up to 2500N thrust for agricultural equipment, factory fixtures and OEM lift assists. Its brushed DC drive and robust gearbox are built for repetitive push/pull cycles on 12V or 24V systems.

Operation

Wire to a suitable DC supply and reverse polarity to change direction. Confirm mechanical alignment before first run to avoid side loading that shortens service life.

Notes:

  • Select load and speed based on your duty cycle and mounting orientation.
  • Continuous operation at maximum rated load is not recommended.
  • Custom configurations are available for OEM projects.

Need a Custom Configuration?

Contact Elerover for voltage, stroke, speed, feedback, cable length and connector customization. Messages go to [email protected].
