Vérin linéaire SLA-T01

SLA-T01 vérin linéaire pour robot

SLA-T01 vérin linéaire pour robot is supplied by Elerover as a vérin linéaire for OEM and industrial motion projects. Key ratings include Speed operation. Request OEM customization for voltage, stroke, feedback and connectors.

Manufactured and supplied by Elerover — Vérin linéaire manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

Paramètres clés

Voltage
Speed
7mm/s
128N / 13 kg / 29 lbs
15mm/s
64N / 6.5 kg / 14 lbs
30mm/s
32N / 3.2 kg / 7 lbs
50mm/s
19N / 1.9 kg / 4 lbs
150mm/s
6N / 0.6 kg / 1.3 lbs
6V/12V/24VDC
5mm/s
mm/s Max Load Capacity
188N / 19 Kgs / 42 lbs at 5 mm/second No-load Current
Request OEM Quote WhatsApp
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

Aperçu du produit

High-Quality Miniature Linear Actuators Enhance your projects with our high-quality miniature linear actuators, designed to deliver superior performance and reliability across a wide range of applications. Built with robust materials and advanced technology, these actuators are perfect for environments demanding precision, durability, and adaptability. Voltage Speed Load 6V/12V/24VDC 5mm/s 188N / 19 kg / 42 lbs 7mm/s 128N / 13 kg / 29 lbs 9.5mm/s 96N / 9.8 kg / 21 lbs 15mm/s 64N / 6.5 kg / 14 lbs 30mm/s 32N / 3.2 kg / 7 lbs 50mm/s 19N / 1.9 kg / 4 lbs 150mm/s 6N / 0.6 kg / 1.3 lbs Features: High-Quality Products and Services : We provide top-notch actuators along with exceptional customer support. Durable Polyamide Housing : Capable of operating in harsh environments. Metal Gearbox : Features high-strength, wear-resistant gears for longevity. Corrosion-Resistant Construction : Made with aluminum alloy telescopic and outer tubes. Strong Thrust : Delivers up to 188N / 19 Kgs / 42 lbs. Multiple Speed Options : Ranges from 5 mm/second to 150 mm/second. Versatile Stroke Options : Offers strokes from 10 mm to 150 mm. Advanced Waterproof and Dustproof Technology : Ensures reliable performance. Low Power Consumption and Noise : Designed for efficient and quiet operation. Built-in Limit Switches : Automatically stops when the stroke rod reaches the limit position and locks in place without requiring power. Maintenance-Free : Designed for long-term, hassle-free use. Specifications: Working Voltage Options : 6V DC, 12V DC, or 24V DC Stroke Options : 10 mm Installation Length : 55 mm + Stroke Speed Options : 5 mm±1mm/s 7 mm±2mm/s 9.5 mm±2mm/s 15 mm±3mm/s 30 mm±5mm/s 50 mm±10mm/s 150 mm±20mm/s Max Load Capacity : 188N / 19 Kgs / 42 lbs at 5 mm/second No-load Current : 0.02~0.04A at 12V 0.04~0.08A at 6V Full Load Current : 0.2~0.3A at 12V 0.4~0.6A at 6V Outer Tube Diameter : 12*16 mm Telescopic Tube Diameter : 6*9 mm Mounting Holes Diameter : 4 mm Material : Housing : Polyamide S

Caractéristiques clés

  • Produits et services de haute qualité : vérins performants et support client exceptionnel.
  • Boîtier polyamide durable : fonctionnement fiable en environnements exigeants.
  • Boîte de vitesses métallique : engrenages haute résistance et résistants à l’usure.
  • Construction anticorrosion : tubes télescopiques et externes en alliage d’aluminium.
  • Forte poussée : jusqu’à 188N / 19 kg / 42 lbs.
  • Options de vitesse multiples : de 5 mm/s à 150 mm/s.
  • Options de course polyvalentes : courses de 10 mm à 150 mm.
  • Technologie avancée étanche et anti-poussière : performance fiable.
  • Faible consommation et bruit : fonctionnement efficace et silencieux.
  • Fins de course intégrés : arrêt automatique en fin de course avec verrouillage sans alimentation.
  • Sans entretien : conçu pour une utilisation durable sans maintenance.
  • Options de tension de fonctionnement : 6V DC, 12V DC ou 24V DC

Spécifications techniques

Voltage Speed
6V/12V/24VDC 5mm/s
7mm/s 128N / 13 kg / 29 lbs
9.5mm/s 96N / 9.8 kg / 21 lbs
15mm/s 64N / 6.5 kg / 14 lbs
30mm/s 32N / 3.2 kg / 7 lbs
50mm/s 19N / 1.9 kg / 4 lbs
150mm/s 6N / 0.6 kg / 1.3 lbs
Kgs / 42 lbs. Multiple Speed Options Ranges from 5 mm/second to 150 mm/second. Versatile Stroke Options
Working Voltage Options 6V DC, 12V DC, or 24V DC Stroke Options
mm Installation Length 55 mm + Stroke Speed Options
mm/s Max Load Capacity 188N / 19 Kgs / 42 lbs at 5 mm/second No-load Current

Applications

  • Petites portes et fenêtres
  • Mobilier
  • Équipements médicaux et de santé
  • Machines agricoles
  • Véhicules et navires
  • Drones et modèles d’aéronefs

FAQ

Qu’est-ce que le SLA-T01 ?

Tension de fonctionnement optionnelle : 6V DC, 12V DC ou 24VDC. Course optionnelle : 10/17.5/21/25/30/50/75/100/150/200mm. Longueur d’installation : 55mm + course. Vitesses optionnelles...

Elerover fabrique-t-il le SLA-T01 ?

Oui. Elerover est fabricant et fournisseur de vérin linéaire. Ce modèle propose des options OEM indiquées dans les données produit — indiquez le cycle de service et la quantité pour un devis usine.

Quelles sont les spécifications clés du SLA-T01 ?

Les valeurs issues des spécifications produit incluent tension Speed. Consultez le tableau Spécifications techniques sur cette page.

Pour quelles applications le SLA-T01 est-il prévu ?

Applications typiques : Petites portes et fenêtres, Mobilier, Équipements médicaux et de santé, Machines agricoles.

Comment demander un devis pour le SLA-T01 ?

Indiquez charge, course, tension, indice IP, cycle de service, quantité et options OEM via le formulaire de contact ou WhatsApp.

Détails supplémentaires

High-Quality Miniature Linear Actuators

Enhance your projects with our high-quality miniature linear actuators, designed to deliver superior performance and reliability across a wide range of applications. Built with robust materials and advanced technology, these actuators are perfect for environments demanding precision, durability, and adaptability.

Voltage
Speed
Load


6V/12V/24VDC
5mm/s
188N / 19 kg / 42 lbs
7mm/s
128N / 13 kg / 29 lbs
9.5mm/s
96N / 9.8 kg / 21 lbs
15mm/s
64N / 6.5 kg / 14 lbs
30mm/s
32N / 3.2 kg / 7 lbs
50mm/s
19N / 1.9 kg / 4 lbs
150mm/s
6N / 0.6 kg / 1.3 lbs
  • High-Quality Products and Services: We provide top-notch actuators along with exceptional customer support.
  • Durable Polyamide Housing: Capable of operating in harsh environments.
  • Metal Gearbox: Features high-strength, wear-resistant gears for longevity.
  • Corrosion-Resistant Construction: Made with aluminum alloy telescopic and outer tubes.
  • Strong Thrust: Delivers up to 188N / 19 Kgs / 42 lbs.
  • Multiple Speed Options: Ranges from 5 mm/second to 150 mm/second.
  • Versatile Stroke Options: Offers strokes from 10 mm to 150 mm.
  • Advanced Waterproof and Dustproof Technology: Ensures reliable performance.
  • Low Power Consumption and Noise: Designed for efficient and quiet operation.
  • Built-in Limit Switches: Automatically stops when the stroke rod reaches the limit position and locks in place without requiring power.
  • Maintenance-Free: Designed for long-term, hassle-free use.
  • Working Voltage Options: 6V DC, 12V DC, or 24V DC
  • Stroke Options: 10 mm

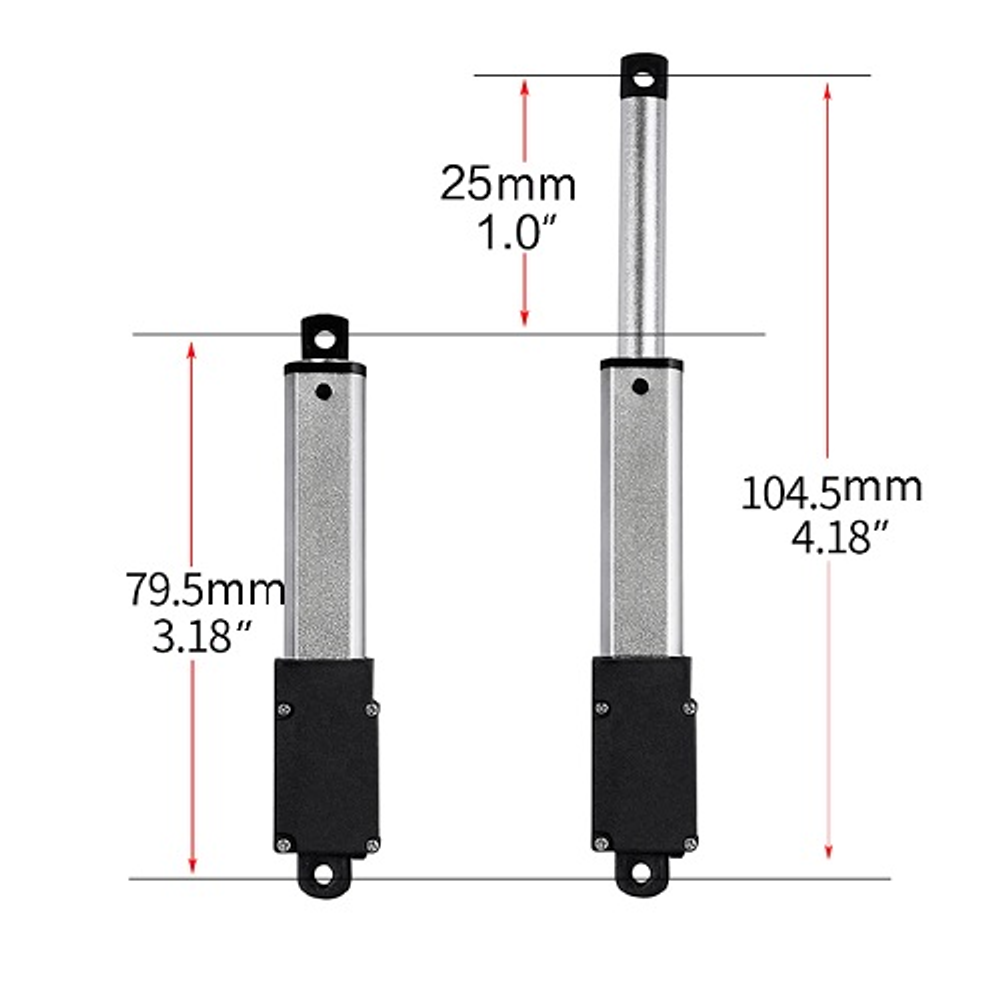

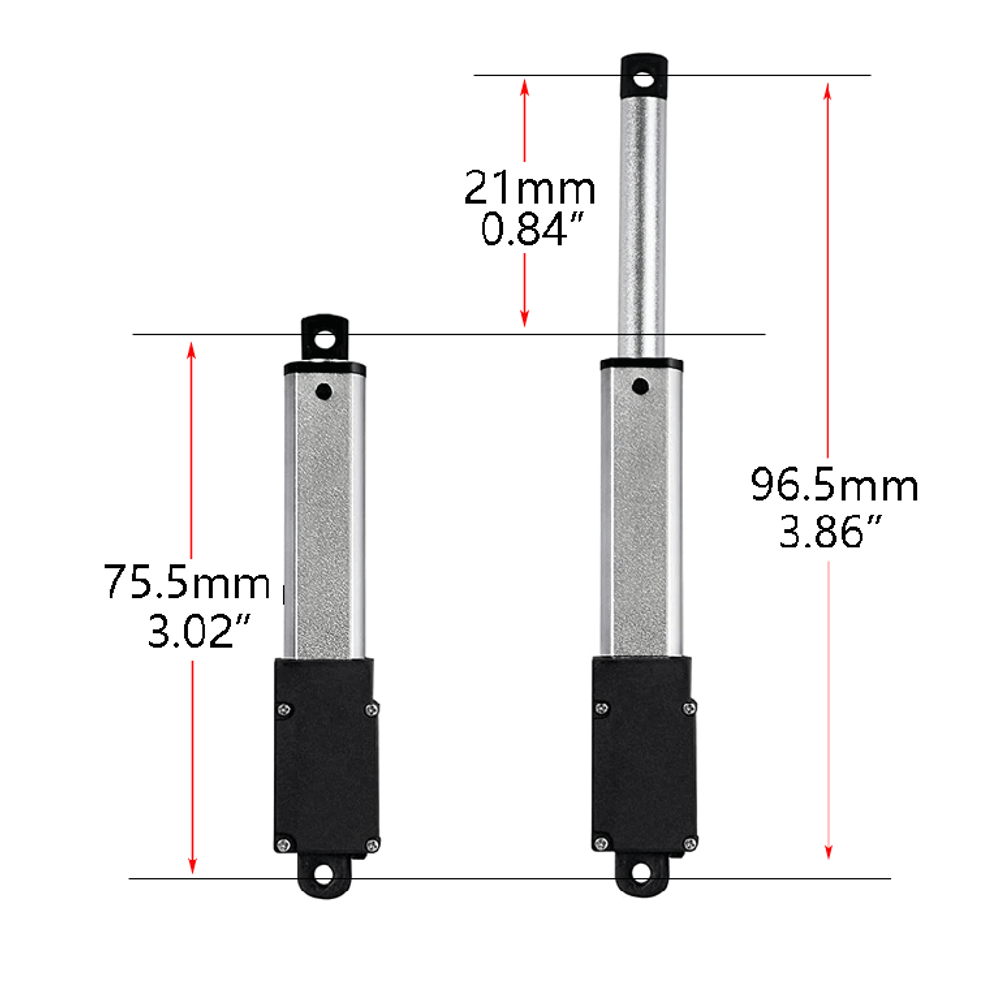

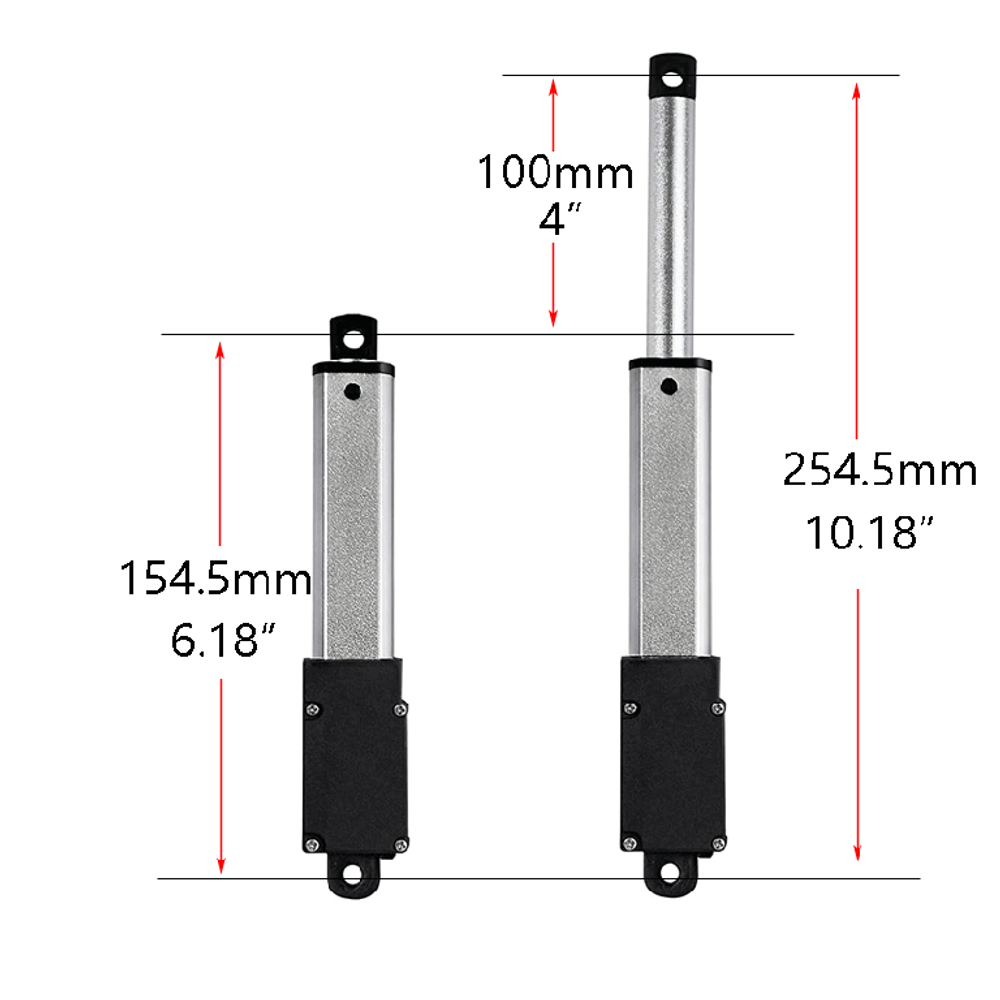

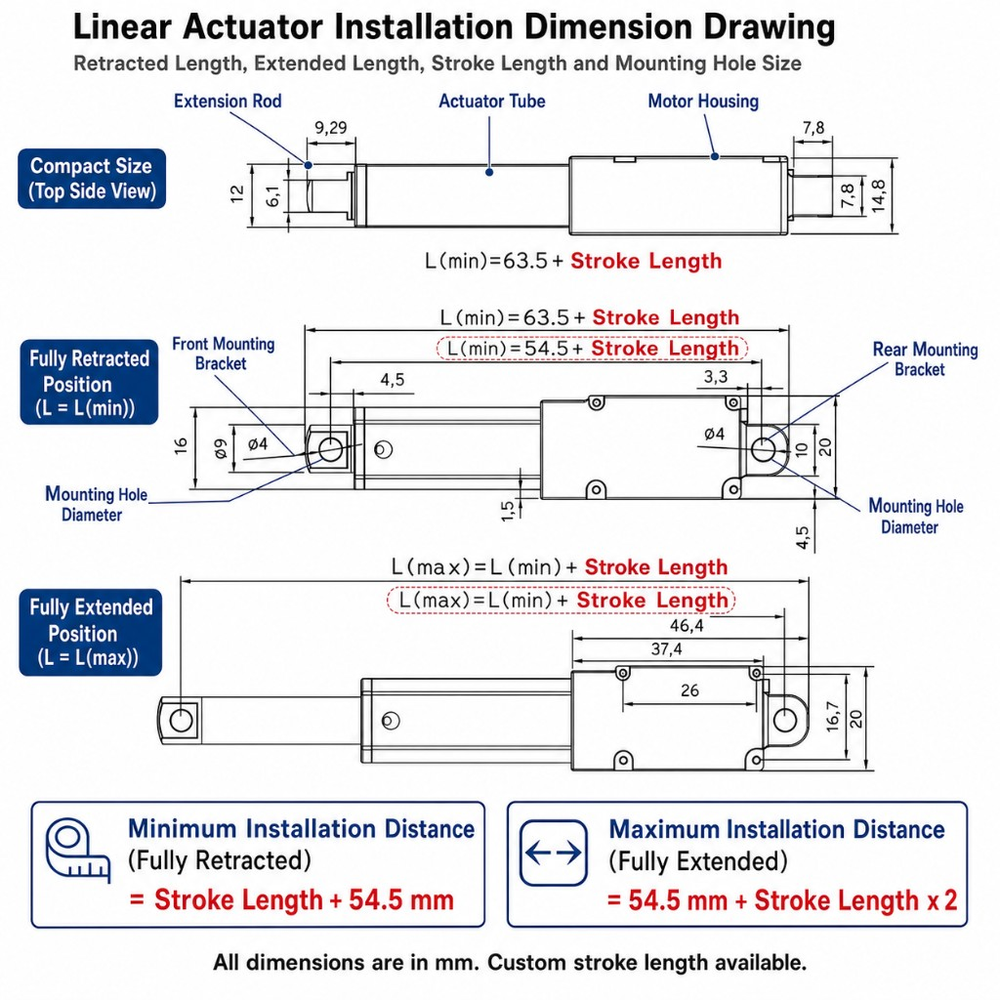

  • Installation Length: 55 mm + Stroke
  • Speed Options:
    • 5 mm±1mm/s
    • 7 mm±2mm/s
    • 9.5 mm±2mm/s
    • 15 mm±3mm/s
    • 30 mm±5mm/s
    • 50 mm±10mm/s
    • 150 mm±20mm/s
  • Max Load Capacity: 188N / 19 Kgs / 42 lbs at 5 mm/second
  • No-load Current:
    • 0.02~0.04A at 12V
    • 0.04~0.08A at 6V
  • Full Load Current:
    • 0.2~0.3A at 12V
    • 0.4~0.6A at 6V
  • Outer Tube Diameter: 12*16 mm
  • Telescopic Tube Diameter: 6*9 mm
  • Mounting Holes Diameter: 4 mm
  • Material:
    • Housing: Polyamide
    • Stroke Rod: Aluminum Alloy
    • Outer Tube: Aluminum Alloy
    • Gear: Steel Alloy
  • Motor Type: Brushed DC Motor
  • Duty Cycle: 10%

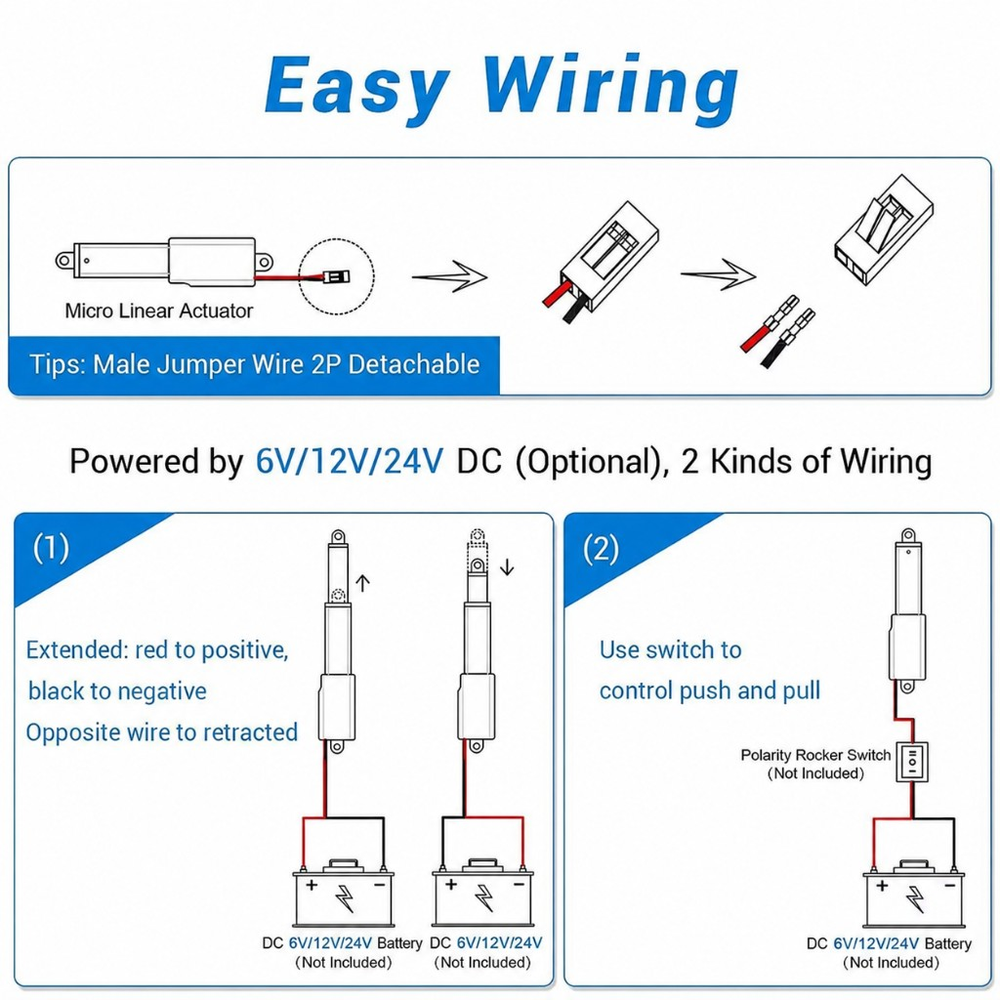

  • Plug Standard: Ordinary Two-core Wire
  • Certifications: CE
  • Operating Temperature: -26℃ to 85℃
  • Operating Noise: Approximately 45dB~55dB
  • IP Rating: IP54

These miniature linear actuators are small, light, quiet, and durable, making them ideal for a variety of applications in industries such as:

  • Small Doors and Windows
  • Furniture
  • Medical and Healthcare Equipment
  • Agricultural Machinery
  • Vehicles and Ships
  • Drones and Aircraft Models
  • Car and Ship Models
  • Robotics
  • Remote Controls (RC)

Our versatile actuators are capable of performing multiple functions, including opening, closing, pushing, pulling, lifting, and lowering various devices. With precision engineering and a compact design, they deliver seamless functionality while ensuring minimal space usage.

Upgrade your systems with our high-quality miniature linear actuators and experience the perfect blend of efficiency, reliability, and performance.
