Schwenkantrieb
Modell SC21-125-RC-24H15300
SC21 21-Inch Slewing Drive | 24 V DC Worm Gear Rotary Actuator for Heavy Loads
SC21 21-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Heavy Loads from Elerover.
Kernspezifikationen
- Abtriebsmoment
- 15 kN·m / 11.1×10³ lbf·ft
- Haltemoment
- 105.8 kN·m / 78.0×10³ lbf·ft
- Kippmoment
- 203 kN·m / 149.7×10³ lbf·ft
- Axiallast
- 1598 kN / 359.2×10³ lbf
Produktübersicht
SC21 21-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Heavy Loads from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
- Abtriebsmoment
- 15 kN·m / 11.1×10³ lbf·ft
- Haltemoment
- 105.8 kN·m / 78.0×10³ lbf·ft
- Kippmoment
- 203 kN·m / 149.7×10³ lbf·ft
- Axiallast
- 1598 kN / 359.2×10³ lbf
- Radiallast
- 640 kN / 143.9×10³ lbf
- Übersetzung
- 125:1
Anwendungen
- Large solar trackers
- PV / CSP tracking systems
- Aerial platforms and man lifts
- Truck-mounted cranes
- Antenna positioning
- Industrial rotary actuation
Vorteile
- 21-inch worm-gear slewing drive with 24VDC IP65 reducer motor
- Output torque 15 kN·m / holding torque 105.8 kN·m
- Tilting moment 203 kN·m
- Gear ratio 125:1 with precision ≤ 0.15°
- Rated output speed 0.012 rpm
- Hall A/B feedback for closed-loop positioning

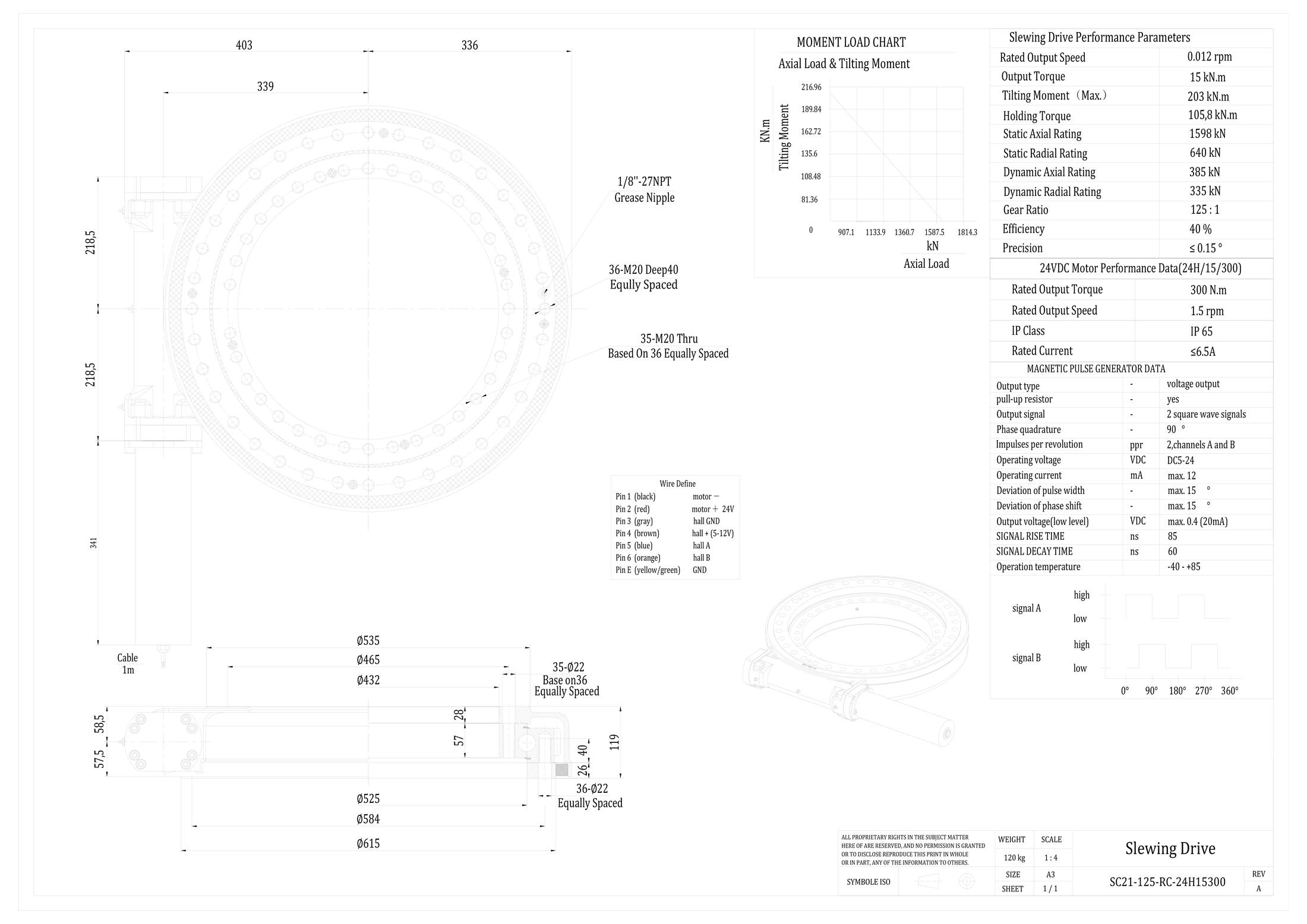

Technische Spezifikationen
| Drive type | 21-inch electric worm-gear slewing drive |
|---|---|
| Abtriebsmoment | 15 kN·m / 11.1×10³ lbf·ft |
| Haltemoment | 105.8 kN·m / 78.0×10³ lbf·ft |
| Kippmoment | 203 kN·m / 149.7×10³ lbf·ft |
| Axiallast | 1598 kN / 359.2×10³ lbf |
| Radiallast | 640 kN / 143.9×10³ lbf |
| Übersetzung | 125:1 |
| Spiel | ≤ 0.15° |
| Motorspannung | 24 V DC |
| IP-Schutzart | IP65 |
Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | 0.012 rpm | — |
| Output Torque | 15 kN·m | 11.1×10³ lbf·ft |
| Tilting Moment (Max.) | 203 kN·m | 149.7×10³ lbf·ft |
| Holding Torque | 105.8 kN·m | 78.0×10³ lbf·ft |
| Static Axial Rating | 1598 kN | 359.2×10³ lbf |
| Static Radial Rating | 640 kN | 143.9×10³ lbf |
| Dynamic Axial Rating | 335 kN | 75.3×10³ lbf |
| Dynamic Radial Rating | 385 kN | 86.6×10³ lbf |
| Gear Ratio | 125:1 | — |
| Efficiency | 40% | — |
| Precision | ≤ 0.15° | — |
| Approx. Weight | 120 kg | — |
