Request Datasheet
Linearantrieb
Modell SLA-T52

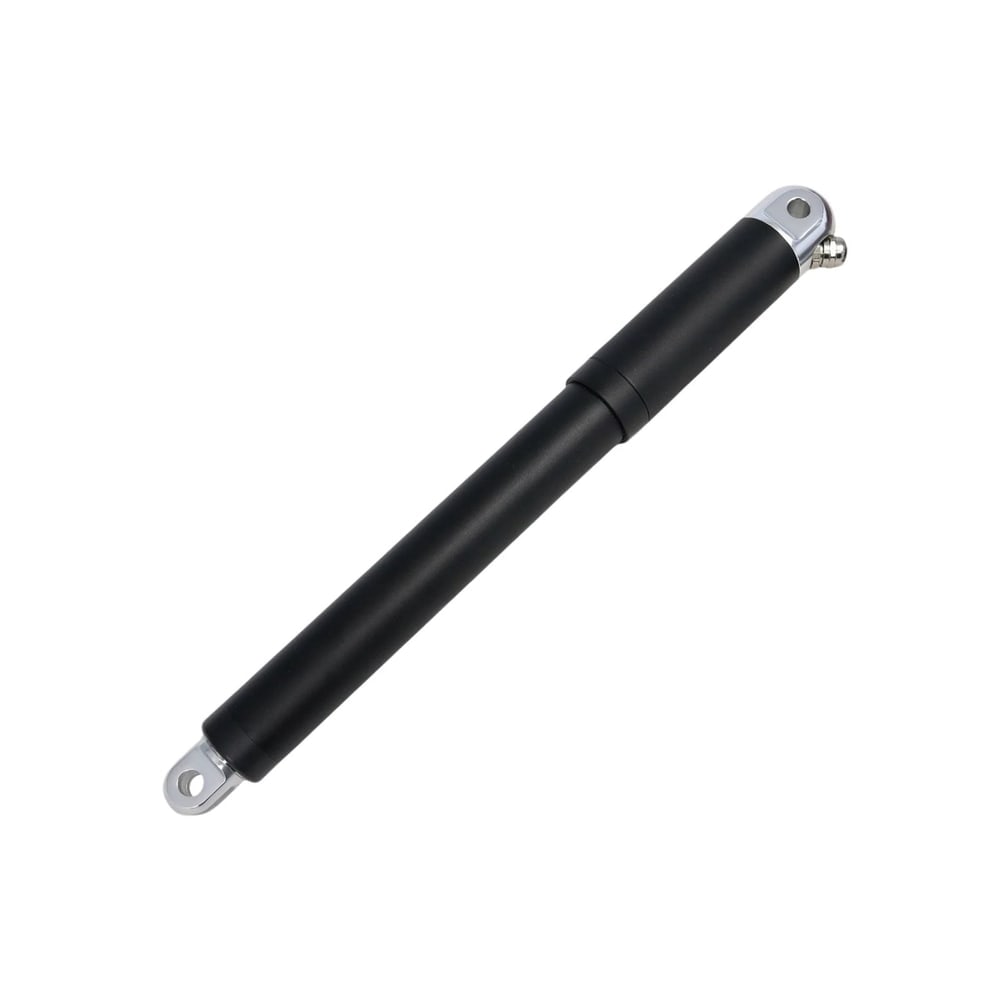

SLA-T52 IP68 wasserdichter Linearantrieb 6,000 N
SLA-T52 6000N IP68 waterproof linear actuator from Elerover.
Kernspezifikationen
- Maximale Last
- 6000 N
- Hub
- 20 – 500 mm
- Spannung
- 12 V / 24 V DC
- IP-Schutzart
- IP68
Produktübersicht
SLA-T52 6000N IP68 waterproof linear actuator from Elerover. This DC linear actuator is built for OEM equipment that needs repeatable push/pull motion under industrial duty.
- Maximale Last
- 6000 N
- Hub
- 20 – 500 mm
- Spannung
- 12 V / 24 V DC
- IP-Schutzart
- IP68
- Rückmeldung
- Optional
- Einschaltdauer
- 10%
Anwendungen
- Outdoor automation
- Marine-adjacent equipment
- Industrial wet environments
Vorteile
- Nur-Schub-Funktion optional.
- Ausgangs-Endschalterkabel optional.
- Max. Last des SLA-T52 12V beträgt 5000N.
- Anpassbare Hublängen verfügbar.
- Min. Hub: 20mm, max. Hub: 500mm.
- Hubgenauigkeit: ±2 mm.
Technische Spezifikationen
| Maximale Last | 6000 N |
|---|---|
| Hub | 20 – 500 mm |
| Spannung | 12 V / 24 V DC |
| IP-Schutzart | IP68 |
| Einschaltdauer | 10% |
| Rückmeldung | Optional |
| Limit switch | Built-in, non-adjustable |
| Noise level | < 60 dB |
| Housing material | Aluminum alloy |
| Rod material | Stainless steel |
| Operating temperature | -25°C to +65°C |
Technische Dokumente anfordern
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
