SLA-TG63S elektrohydraulischer Linearantrieb 45000N Last-/Schubkraft

1 / 5

Elektrohydraulischer Antrieb

SLA-TG63S elektrohydraulischer Linearantrieb 45000N Last-/Schubkraft

SLA-TG63S elektrohydraulischer Linearantrieb 45000N Last-/Schubkraft is supplied by Elerover as a elektrohydraulischer antrieb for OEM and industrial motion projects. Key ratings include DC12V/24V/48V operation, up to 4.5T load, 50~800mm stroke. Request OEM customization for voltage, stroke, feedback and connectors.

Manufactured and supplied by Elerover — Elektrohydraulischer Antrieb manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

Wichtige Parameter

Voltage
DC12V/24V/48V
Stroke
50~800mm
Push force
4.5T
Pull force
2.8T
Max Speed
2-3mm/s
Power
300W
Temperature
-20~60℃
Frequency
4min/ each time
Request OEM Quote WhatsApp
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

Produktübersicht

High-Force Small Hydraulic Linear Actuator for Industrial Applications Introducing the SLA-TG-63S small hydraulic linear actuator, designed to deliver powerful performance and reliability in a variety of industrial applications. With a jacking force of 4.5T and a retracting force of 2.8T, this actuator is ideal for lifting platforms and industrial automation equipment. Equipped with a 24V/48V DC motor and offering optional stroke lengths from 50mm to 300mm, our hydraulic linear actuator combines strength, stability, and convenience at an excellent price point. Key Features: High Force Capability : Provides a robust 4.5T jacking force and 2.8T retracting force, perfect for demanding applications. Integrated Protection Mechanisms : Comes with over-current, overload, and overheat protection, along with a hydraulic cylinder two-way pressure self-locking system. High Stability and Performance : Features a self-locking valve, reversing valve, and over-pressure valve for enhanced stability. Ease of Use : Ready to use upon connection to a power supply, with no need for additional hydraulic components. Customizable Options : Pressure output interface and mounting dimensions can be tailored to specific requirements. Specifications: Model : SLA-TG-63S Input Voltage : 24V / 48V DC Power : 300W / 800W Stroke Length : Optional 50mm, 100mm, 150mm, 200mm, 250mm, 300mm (Customizable within 50mm-300mm range) Jacking Force : 4.5T Retracting Force : 2.8T Speed : 2-3mm/s, 6-7mm/s Protection Grade : IPx6 Operating Temperature : -20°C to +60°C Duty Cycle : Long-term continuous use, up to 6 minutes at a time Weight : 5-15 kg Item TG63 Customized TG63 Customized Voltage DC12V/24V/48V DC 24V/48V Power 300W 800W Stroke 50~800mm 50~800mm Push force 4.5T 4.5T Pull force 2.8T 2.8T Max Speed 2-3mm/s 6-7mm/s Temperature -20~60℃ -20~60℃ Frequency 4min/ each time 4min/ each time Waterproof rate IP6X IP6X Applications: Our hydraulic linear actuators are ideal for a variety of applications, including

Wesentliche Merkmale

  • Hohe Kraftleistung: Hubkraft 4.5T und Einzugskraft 2.8T, ideal für Schwerlastanwendungen.
  • Integrierte Schutzmechanismen: Überstrom-, Überlast- und Überhitzungsschutz mit bidirektionalem Druck-Selbsthemmungssystem am Hydraulikzylinder.
  • Hohe Stabilität und Leistung: Mit Selbsthemmungsventil, Wegeventil und Überdruckventil für erhöhte Stabilität.
  • Einfache Bedienung: Nach Anschluss an die Stromversorgung sofort einsatzbereit, ohne zusätzliche Hydraulikkomponenten.
  • Anpassbare Optionen: Druckausgang und Einbaumaße nach Anforderung anpassbar.
  • Modell: SLA-TG-63S
  • Eingangsspannung: 24V / 48V DC
  • Leistung: 300W / 800W
  • Hublänge: Optional 50mm, 100mm, 150mm, 200mm, 250mm, 300mm (anpassbar von 50mm bis 300mm)
  • Hubkraft: 4.5T
  • Einzugskraft: 2.8T
  • Geschwindigkeit: 2-3mm/s, 6-7mm/s

Technische Spezifikationen

Item TG63 Customized
Voltage DC12V/24V/48V
Power 300W
Stroke 50~800mm
Push force 4.5T
Pull force 2.8T
Max Speed 2-3mm/s
Temperature -20~60℃
Frequency 4min/ each time
Waterproof rate IP6X
nced stability. Ease of Use Ready to use upon connection to a power supply, with no need for additional hydr
aulic components. Customizable Options Pressure output interface and mounting dimensions can be tailored to specific re

Anwendungen

  • Hebebühnen
  • Industrieautomationsausrüstung
  • Schwermaschinen
  • Baumaschinen
  • Landmaschinen
  • Medizinprodukte

Zusätzliche Details

High-Force Small Hydraulic Linear Actuator for Industrial Applications

Introducing the SLA-TG-63S small hydraulic linear actuator, designed to deliver powerful performance and reliability in a variety of industrial applications. With a jacking force of 4.5T and a retracting force of 2.8T, this actuator is ideal for lifting platforms and industrial automation equipment. Equipped with a 24V/48V DC motor and offering optional stroke lengths from 50mm to 300mm, our hydraulic linear actuator combines strength, stability, and convenience at an excellent price point.

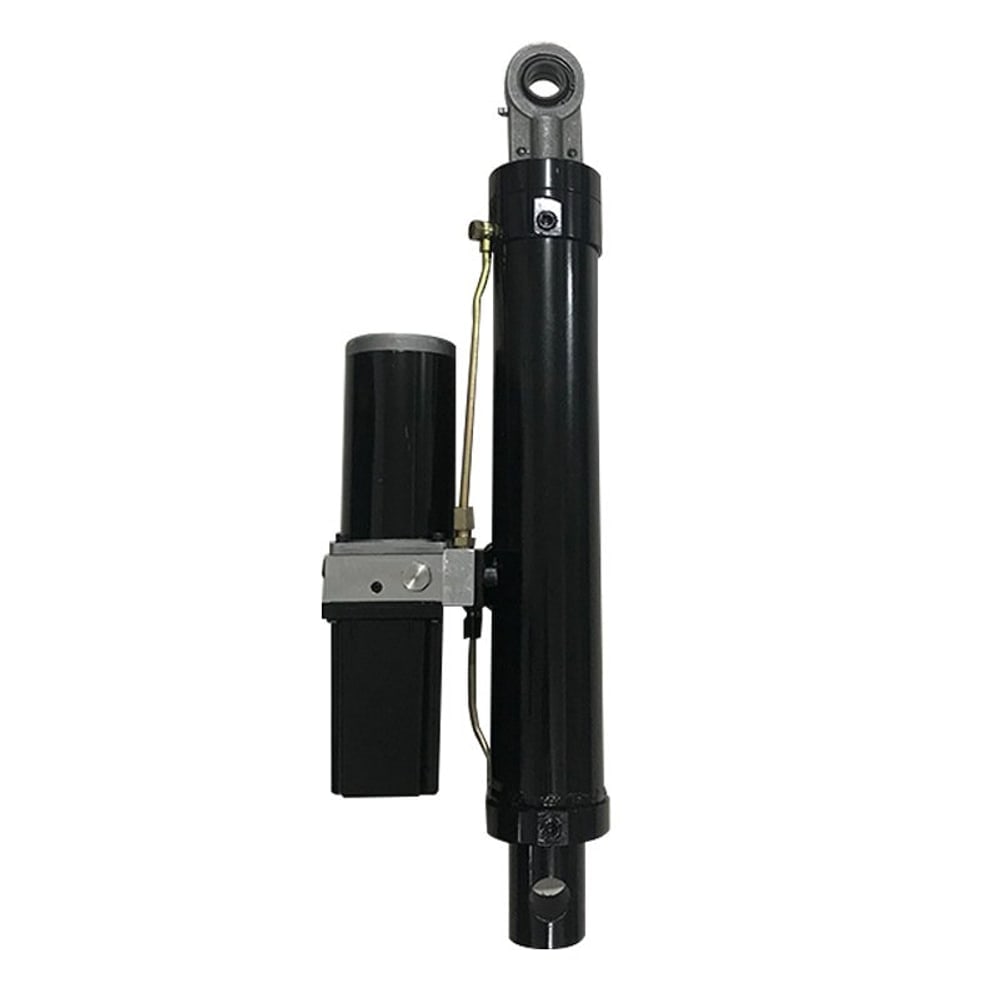

Electric Hydraulic Actuator - SLA-TG63S 45000N load/push force electric hydraulic linear actuator - Detail view 1

  • High Force Capability: Provides a robust 4.5T jacking force and 2.8T retracting force, perfect for demanding applications.
  • Integrated Protection Mechanisms: Comes with over-current, overload, and overheat protection, along with a hydraulic cylinder two-way pressure self-locking system.
  • High Stability and Performance: Features a self-locking valve, reversing valve, and over-pressure valve for enhanced stability.
  • Ease of Use: Ready to use upon connection to a power supply, with no need for additional hydraulic components.
  • Customizable Options: Pressure output interface and mounting dimensions can be tailored to specific requirements.
  • Model: SLA-TG-63S
  • Input Voltage: 24V / 48V DC
  • Power: 300W / 800W
  • Stroke Length: Optional 50mm, 100mm, 150mm, 200mm, 250mm, 300mm (Customizable within 50mm-300mm range)
  • Jacking Force: 4.5T
  • Retracting Force: 2.8T
  • Speed: 2-3mm/s, 6-7mm/s
  • Protection Grade: IPx6
  • Operating Temperature: -20°C to +60°C
  • Duty Cycle: Long-term continuous use, up to 6 minutes at a time
  • Weight: 5-15 kg
Item
TG63 Customized
TG63 Customized
Voltage
DC12V/24V/48V
DC 24V/48V
Power
300W
800W
Stroke
50~800mm
50~800mm
Push force
4.5T
4.5T
Pull force
2.8T
2.8T
Max Speed
2-3mm/s
6-7mm/s
Temperature
-20~60℃
-20~60℃
Frequency
4min/ each time
4min/ each time
Waterproof rate
IP6X
IP6X

Our hydraulic linear actuators are ideal for a variety of applications, including but not limited to:

  • Lifting Platforms
  • Industrial Automation Equipment
  • Heavy Machinery
  • Construction Equipment
  • Agricultural Machinery
  • Medical Devices

Why Choose Our Hydraulic Linear Actuator?

Our hydraulic linear actuators provide a powerful, reliable, and easy-to-install solution for your lifting and automation needs. With high force capabilities, integrated protection mechanisms, and customizable options, they are designed to meet the specific demands of your projects. Whether you need to lift, push, or pull, our actuators offer the performance and durability you need to get the job done efficiently.

Enhance your systems with our high-force hydraulic linear actuators and experience superior performance and reliability. Contact us today to learn more about how our actuators can meet your specific application requirements.
