Request Datasheet
محرك تدوير
الطراز SC32-154B-25RC

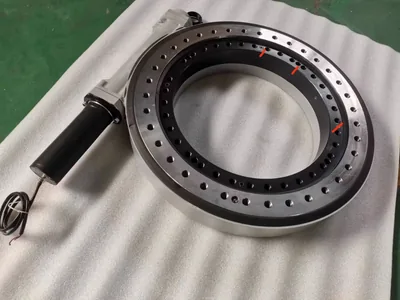

SC32 32-Inch Slewing Drive | Heavy-Duty Worm Gear Rotary Drive for Solar & Machinery
SC32 32-Inch Slewing Drive | Heavy-Duty Worm Gear Rotary Drive for Solar & Machinery from Elerover.
المواصفات الرئيسية
- عزم الخرج
- 25 kN·m / 18.5×10³ lbf·ft
- عزم التثبيت
- 190 kN·m / 140×10³ lbf·ft
- عزم الانقلاب
- 347 kN·m / 256×10³ lbf·ft
- الحمل المحوري
- 3021 kN / 680×10³ lbf
نظرة عامة على المنتج
SC32 32-Inch Slewing Drive | Heavy-Duty Worm Gear Rotary Drive for Solar & Machinery from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
- عزم الخرج
- 25 kN·m / 18.5×10³ lbf·ft
- عزم التثبيت
- 190 kN·m / 140×10³ lbf·ft
- عزم الانقلاب
- 347 kN·m / 256×10³ lbf·ft
- الحمل المحوري
- 3021 kN / 680×10³ lbf
- الحمل الشعاعي
- 1210 kN / 272×10³ lbf
- نسبة التخفيض
- 154:1
التطبيقات
- Large solar trackers
- PV / CSP tracking systems
- Truck-mounted cranes
- Aerial platforms and man lifts
- Industrial turntables
- Heavy construction machinery
المزايا
- 32-inch worm-gear slewing drive for extra-heavy rotary loads
- Output torque 25 kN·m / holding torque 190 kN·m
- Tilting moment 347 kN·m
- Gear ratio 154:1 with precision ≤ 0.17°
- Output speed ≤ 2 rpm
- Motor-ready Ø25 keyed input for electric or hydraulic drives
المواصفات الفنية
| Drive type | 32-inch worm-gear slewing drive |
|---|---|
| عزم الخرج | 25 kN·m / 18.5×10³ lbf·ft |
| عزم التثبيت | 190 kN·m / 140×10³ lbf·ft |
| عزم الانقلاب | 347 kN·m / 256×10³ lbf·ft |
| الحمل المحوري | 3021 kN / 680×10³ lbf |
| الحمل الشعاعي | 1210 kN / 272×10³ lbf |
| نسبة التخفيض | 154:1 |
| الخلوص | ≤ 0.17° |

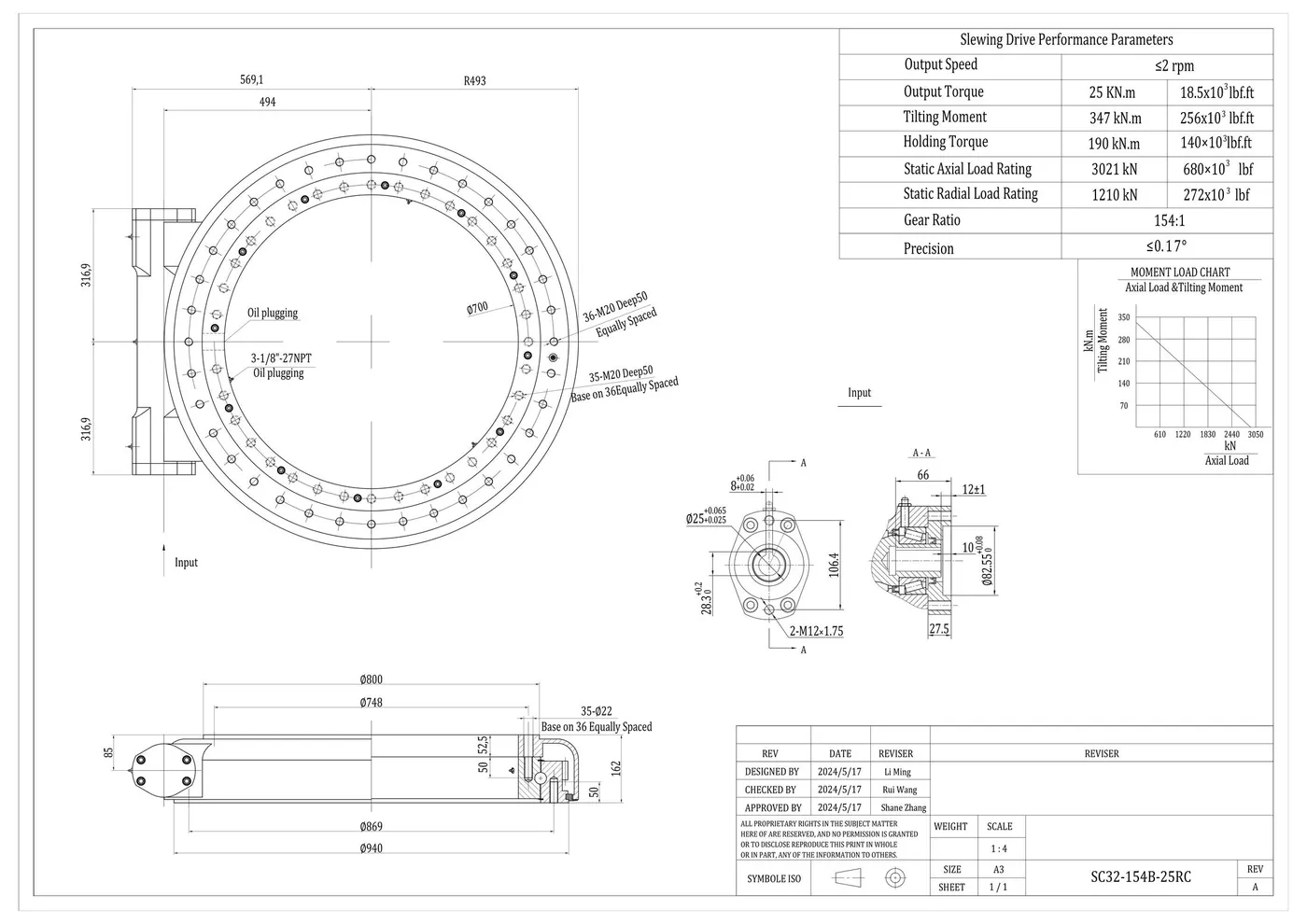

Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Output Speed | ≤ 2 rpm | — |
| Output Torque | 25 kN·m | 18.5×10³ lbf·ft |
| Tilting Moment | 347 kN·m | 256×10³ lbf·ft |
| Holding Torque | 190 kN·m | 140×10³ lbf·ft |
| Static Axial Load Rating | 3021 kN | 680×10³ lbf |
| Static Radial Load Rating | 1210 kN | 272×10³ lbf |
| Gear Ratio | 154:1 | — |
| Precision | ≤ 0.17° | — |
طلب المستندات الفنية
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
