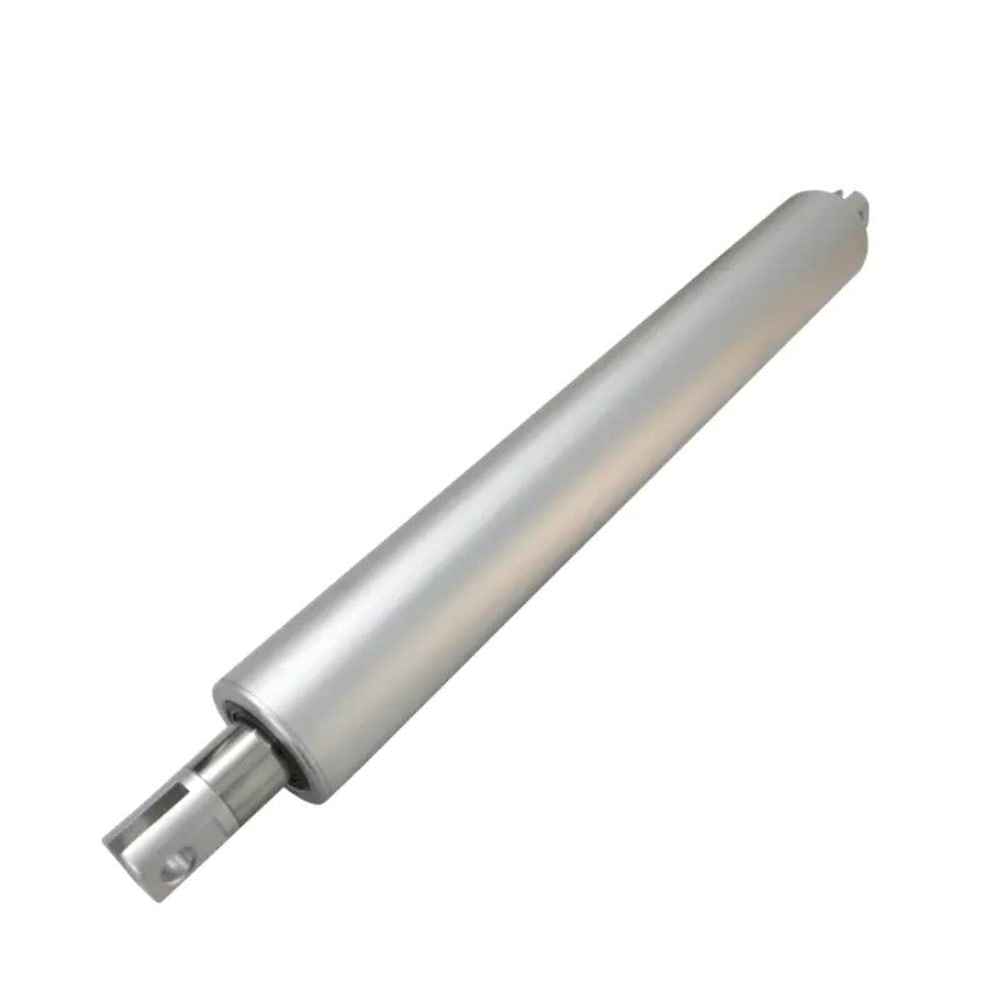

SLA-T50 5000N مشغل خطي أنبوبي

【Installation length】 320mm + S(Stroke length) 【Features】 General features of 50mm tubular linear actuator Motor voltage: 12V DC, 24V DC Maximum load: 6000N pull / push The slowest speed at full load: 2.4mm/s (loading 5000N) Itinerary: 20~1000mm Minimum size: Stroke + 320 mm Color: silver gray or black IP rating: IP66 Operating temperature range: -25 ° C ~ + 65 ° C Higher duty cycle (20%) Service life approx. 50,000 cycles Other options: Hall sensor Self-locking function Built-in limit switches 【Application】 50mm In-line tubular linear actuator, with strong force motor, max load 6000Nm. widely used in Recreational Vehicle, Motorhomes, Solar tracking, Heavy window opener, Industry platform lift, etc. Medical & Health equipment, Automatic switch window, Furniture automation, Clean Energy, woodworking machinery, logistic equipment, agriculture machines and so on. Diameter 50mm 50mm 50mm Rated Force 1500N 3000N 5000N Speed No-load 7.69mm/s 4.2mm/s 2.4mm/s Input Voltage 12V/24V 12/24v 12/24v No-load Current 1.0/0.6A 1.0/0.6A 1.0/0.6A Rated Current 3.0/2.0A 3.5/2.5A 3.5/2.5A Stroke 30-1000mm 30-1000mm 30-1000mm Feedback Option Option Option Duty Cycle 10% 10% 10% IP Rating IP66 IP66 IP66 Operational Temperature -20°C/65°C -20°C/65°C -20°C/65°C Operating Noise 51dB 51dB 51dB Limit Switch Built-in, non-adjustable Built-in, non-adjustable Built-in, non-adjustable Housing Material Aluminum alloy Aluminum alloy Aluminum alloy Stroke Rod Material Stainless steel Stainless steel Stainless stee
