HP250 The smart, intuitive design of the HP250 combines a pump, cylinder, valves and reservoir into one compact, maintenance-free unit,giving you years of trouble-free operation and trusted performance. Every HP250 hydraulic actuator features an installed pressure relief and flow control valve to ensure smooth descent independent of patient weight. Stroke length (mm): 100, 120, 130, 135, 140, 150, 200, 250, 305, 400 Lifting force(kN): 3, 6, 8, 10 Highest static load (kN): 5, 8, 10, 12.5 Number of strokes: 10-35 Lowering speed: fixed throttle or throttle tube / automatic throttle valve. Pump piston diameter (mm): 14, 16 Main piston diameter (mm): 18, 22 Extended length (mm): main length – 137 + stroke + desired end of piston rod Mounting bolts diameter 38 (mm): 60/90 – 85/110 distance Lifting level: 35 degrees Safety valve: optional Pedal shaft: right / left optional with descent Water resistance on washing lines: Standard Colour: silver grey / customer reques t Feeding / stroke (mm2): 2.3 – 3.0 Main piston end: transverse opening – optional external / internal thread / piston rod mount Pedal movement: normal or reverse
مضخة هيدروليكية
SLA-HP250 مضخة هيدروليكية لسرير طبي
مشغل هيدروليكي مدمج SLA-HP250. SLA-HP250 مشغل هيدروليكي مدمج موثوق للغاية بأكثر من مليون وحدة مُنتجة. Co...
Manufactured and supplied by Elerover — مضخة هيدروليكية manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
المعلمات الرئيسية
- Model
- SLA-HP250
- mm)
- 14, 16 Main piston diameter (mm)
- l movement
- normal or reverse
- Application
- Medical bed hydraulic systems
- Stroke Length
- 100–400 mm
- Lifting Force
- 3 / 6 / 8 / 10 kN
- Lowering speed
- fixed throttle or throttle tube / automatic throttle valve. Pump piston diameter
- Standard Colour
- silver grey / customer reques t Feeding / stroke (mm2)
نظرة عامة على المنتج
الميزات الرئيسية
- Self-contained HP250 hydraulic pump unit for medical beds
- Integrated pump, cylinder, valves and reservoir
- Pressure relief and flow control for smooth descent
- Stroke options from 100mm to 400mm
- Lifting force options up to 10 kN
- Maintenance-friendly compact medical design
المواصفات الفنية
| Highest static load (kN) | 5, 8, 10, 12.5 Number of strokes |
|---|---|
| Lowering speed | fixed throttle or throttle tube / automatic throttle valve. Pump piston diameter |
| mm) | 14, 16 Main piston diameter (mm) |
| Extended length (mm) | main length – |
| distance Lifting level | 35 degrees Safety valve |
| optional Pedal shaft | right / left optional with descent Water resistance on washing lines |
| Standard Colour | silver grey / customer reques t Feeding / stroke (mm2) |
| Main piston end | transverse opening – optional external / internal thread / piston rod mount Peda |
| l movement | normal or reverse |
| Model | SLA-HP250 |
| Stroke Length | 100–400 mm |
| Lifting Force | 3 / 6 / 8 / 10 kN |
| Highest Static Load | 5 / 8 / 10 / 12.5 kN |
| Number of Strokes | 10–35 |
| Application | Medical bed hydraulic systems |
التطبيقات
- الرفع
تفاصيل إضافية

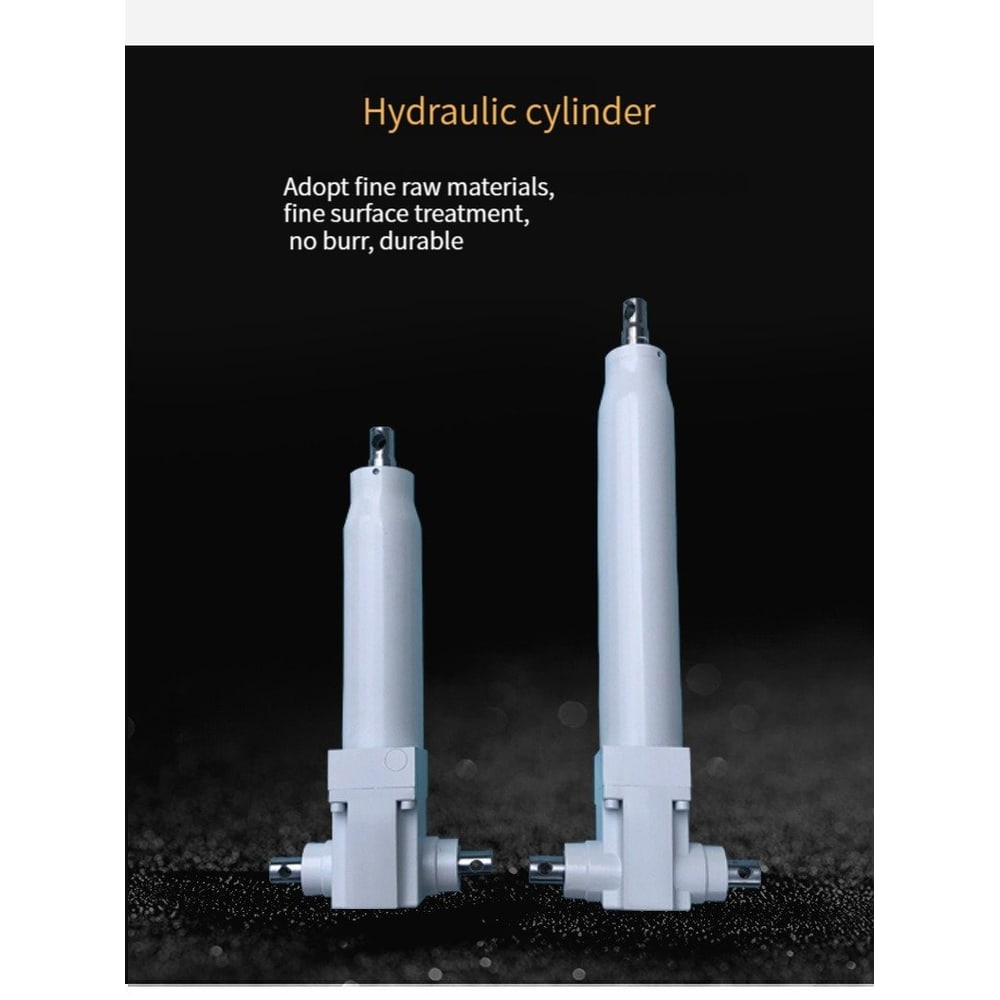

Hydraulic Pump
SLA-HP250 hydraulic pump for medical bed
HP250 The smart, intuitive design of the HP250 combines a pump, cylinder, valves and reservoir into one compact, maintenance-free unit,giving you years of trouble-free operation and trusted performance. Every HP250 hydraulic actuator features an installed pressure relief and flow control valve to ensure smooth descent independent of patient weight. Stroke length (mm): 100, 120, 130, 135, 140, 150, 200, 250, 305, 400 Lifting force(kN): 3, 6, 8, 10 Highest static load (kN): 5, 8, 10, 12.5 Number o
Need a Custom Configuration?
Contact Elerover for voltage, stroke, speed, feedback, cable length and connector customization. Messages go to [email protected].
