SLA-TG63S 45000N مشغل كهروهيدروليكي بقوة حمل/دفع

High-Force Small Hydraulic Linear Actuator for Industrial Applications

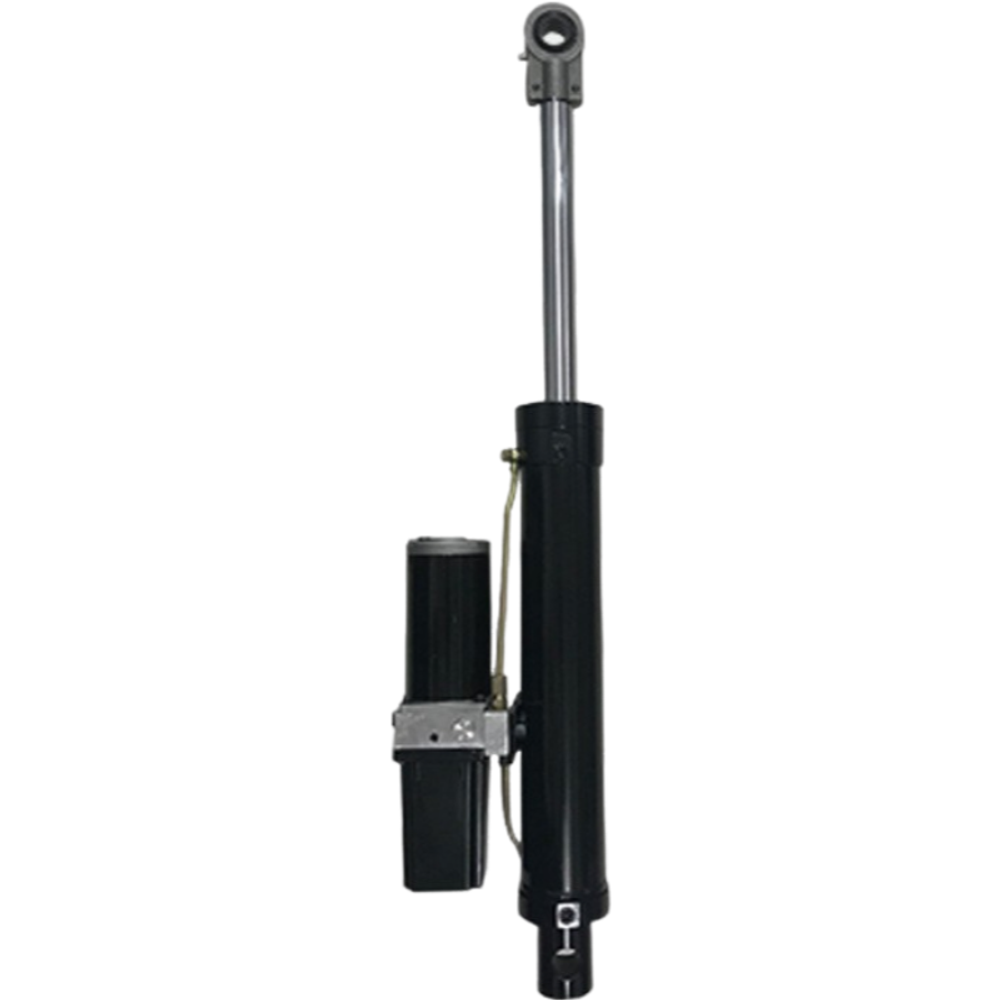

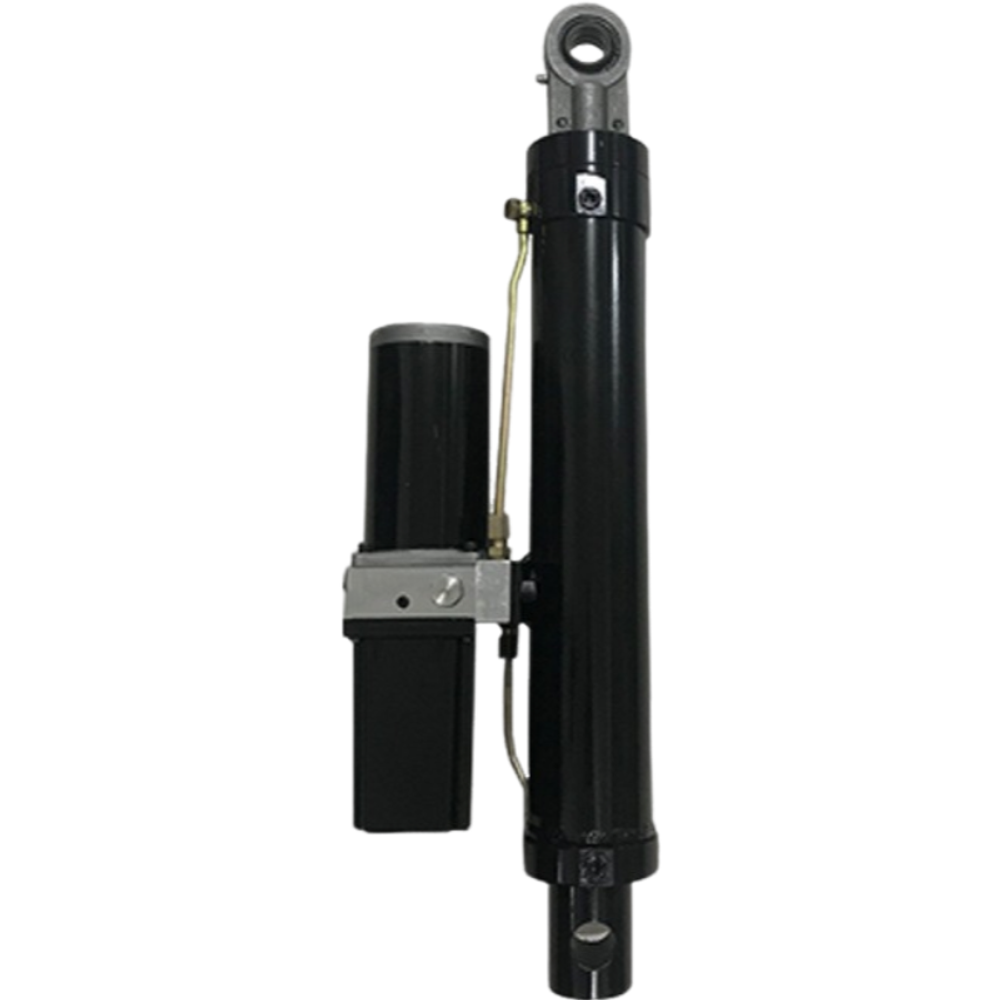

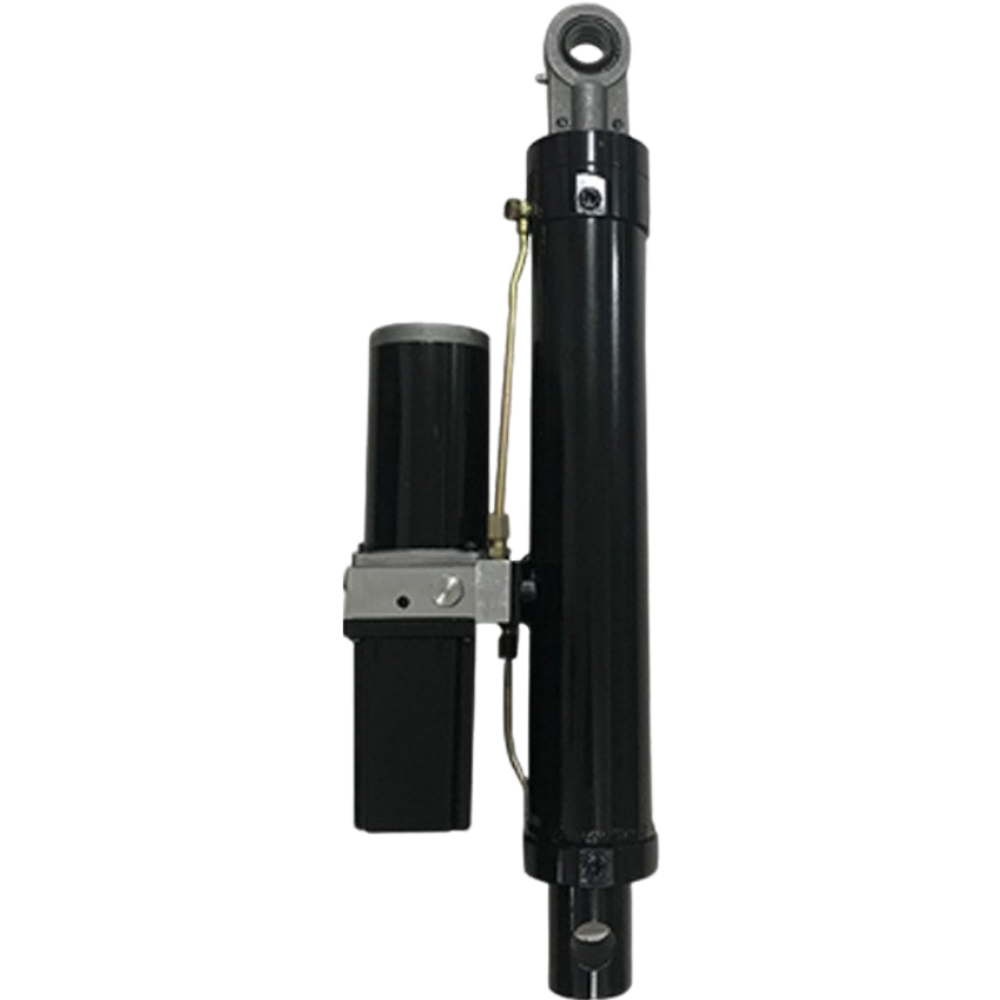

Introducing the SLA-TG-63S small hydraulic linear actuator, designed to deliver powerful performance and reliability in a variety of industrial applications. With a jacking force of 4.5T and a retracting force of 2.8T, this actuator is ideal for lifting platforms and industrial automation equipment. Equipped with a 24V/48V DC motor and offering optional stroke lengths from 50mm to 300mm, our hydraulic linear actuator combines strength, stability, and convenience at an excellent price point.

• High Force Capability: Provides a robust 4.5T jacking force and 2.8T retracting force, perfect for demanding applications.
• Integrated Protection Mechanisms: Comes with over-current, overload, and overheat protection, along with a hydraulic cylinder two-way pressure self-locking system.
• High Stability and Performance: Features a self-locking valve, reversing valve, and over-pressure valve for enhanced stability.
• Ease of Use: Ready to use upon connection to a power supply, with no need for additional hydraulic components.
• Customizable Options: Pressure output interface and mounting dimensions can be tailored to specific requirements.

• Model: SLA-TG-63S
• Input Voltage: 24V / 48V DC
• Power: 300W / 800W
• Stroke Length: Optional 50mm, 100mm, 150mm, 200mm, 250mm, 300mm (Customizable within 50mm-300mm range)
• Jacking Force: 4.5T
• Retracting Force: 2.8T
• Speed: 2-3mm/s, 6-7mm/s
• Protection Grade: IPx6
• Operating Temperature: -20°C to +60°C
• Duty Cycle: Long-term continuous use, up to 6 minutes at a time
• Weight: 5-15 kg

Our hydraulic linear actuators are ideal for a variety of applications, including but not limited to:

• Lifting Platforms
• Industrial Automation Equipment
• Heavy Machinery
• Construction Equipment
• Agricultural Machinery
• Medical Devices

Why Choose Our Hydraulic Linear Actuator?

Our hydraulic linear actuators provide a powerful, reliable, and easy-to-install solution for your lifting and automation needs. With high force capabilities, integrated protection mechanisms, and customizable options, they are designed to meet the specific demands of your projects. Whether you need to lift, push, or pull, our actuators offer the performance and durability you need to get the job done efficiently.

Enhance your systems with our high-force hydraulic linear actuators and experience superior performance and reliability. Contact us today to learn more about how our actuators can meet your specific application requirements.
