SLA-NH32S 12000N مشغل كهروهيدروليكي

1 / 5

مشغل كهروهيدروليكي

SLA-NH32S 12000N مشغل كهروهيدروليكي

SLA-NH32S 12000N مشغل كهروهيدروليكي is supplied by Elerover as a مشغل كهروهيدروليكي for OEM and industrial motion projects. Request OEM customization for voltage, stroke, feedback and connectors.

Manufactured and supplied by Elerover — مشغل كهروهيدروليكي manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

المعلمات الرئيسية

T Speed
25-26mm/s, 39-40mm/s, 55-56mm/s Protection Grade
year Weight
5-20 kg * Oil filler plug
Safety valve
When the piston rod cannot be withdrawn due to unexpected reasons, loosen the sa
W Stroke Length
Optional 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm, 500mm, 600mm, 700mm, 80
SLA-NH-32S Input Voltage
24V / 48V DC Power
IPx6 Operating Temperature
-30°C to +70°C Duty Cycle
Jacking force adjustment plug
When users unscrew the plug, tighten the nut, the jacking force will increase. W
Retracting force adjustment plug
When users unscrew the plug, tighten the nut, the retracting force increases. Wh
Request OEM Quote واتساب
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

نظرة عامة على المنتج

High-Performance Hydraulic Linear Actuator: SLA-NH-32S Introducing the SLA-NH-32S high-performance hydraulic linear actuator, designed to deliver exceptional power and reliability in various industrial applications. With a jacking force of 1.2T and a retracting force of 0.7T, this actuator operates at speeds of 25-26mm/s, 39-40mm/s, and 55-56mm/s, and is compatible with 24V/48V DC input voltage. The stroke length can be customized from 50mm to 1000mm to suit your specific needs. This small hydraulic linear actuator features a compact structure, high-quality construction, and CE certification, ensuring excellent performance in lifting platforms and ship systems. Key Features: High Force Capability: Provides 1.2T jacking force and 0.7T retracting force, ideal for demanding applications. Integrated Protection Mechanisms: Includes over-current, overload, and overheat protection, along with a hydraulic cylinder two-way pressure self-locking system. High Stability and Performance: Features a self-locking valve, reversing valve, and over-pressure valve for enhanced stability. Ease of Use: Ready to use upon connection to a power supply, with no need for additional hydraulic components. Customizable Options: Pressure output interface and mounting dimensions can be tailored to specific requirements. Wide Application Range: Suitable for electric tricycles, sanitation vehicles, lifting platforms, assembly lines, industrial robots, agricultural machinery, and industrial automation equipment. Specifications: Model: SLA-NH-32S Input Voltage: 24V / 48V DC Power: 800W Stroke Length: Optional 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm (Customizable within 50mm-1000mm range) Jacking Force: 1.2T Retracting Force: 0.7T Speed: 25-26mm/s, 39-40mm/s, 55-56mm/s Protection Grade: IPx6 Operating Temperature: -30°C to +70°C Duty Cycle: Long-term continuous use, up to 6 minutes at a time Certification: CE Warranty: 1 year Weight: 5-20 kg * Oil fill

المواصفات الفنية

nced stability. Ease of Use Ready to use upon connection to a power supply, with no need for additional hydr
aulic components. Customizable Options Pressure output interface and mounting dimensions can be tailored to specific re
quirements. Wide Application Range Suitable for electric tricycles, sanitation vehicles, lifting platforms, assembl
SLA-NH-32S Input Voltage 24V / 48V DC Power
W Stroke Length Optional 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm, 500mm, 600mm, 700mm, 80
T Speed 25-26mm/s, 39-40mm/s, 55-56mm/s Protection Grade
IPx6 Operating Temperature -30°C to +70°C Duty Cycle
up to 6 minutes at a time Certification CE Warranty
year Weight 5-20 kg * Oil filler plug
Jacking force adjustment plug When users unscrew the plug, tighten the nut, the jacking force will increase. W
Retracting force adjustment plug When users unscrew the plug, tighten the nut, the retracting force increases. Wh
Safety valve When the piston rod cannot be withdrawn due to unexpected reasons, loosen the sa

التطبيقات

  • الأتمتة الصناعية
  • الزراعة
  • البناء
  • الرفع

تفاصيل إضافية

High-Performance Hydraulic Linear Actuator: SLA-NH-32S
Introducing the SLA-NH-32S high-performance hydraulic linear actuator, designed to deliver exceptional power and reliability in various industrial applications. With a jacking force of 1.2T and a retracting force of 0.7T, this actuator operates at speeds of 25-26mm/s, 39-40mm/s, and 55-56mm/s, and is compatible with 24V/48V DC input voltage. The stroke length can be customized from 50mm to 1000mm to suit your specific needs. This small hydraulic linear actuator features a compact structure, high-quality construction, and CE certification, ensuring excellent performance in lifting platforms and ship systems.

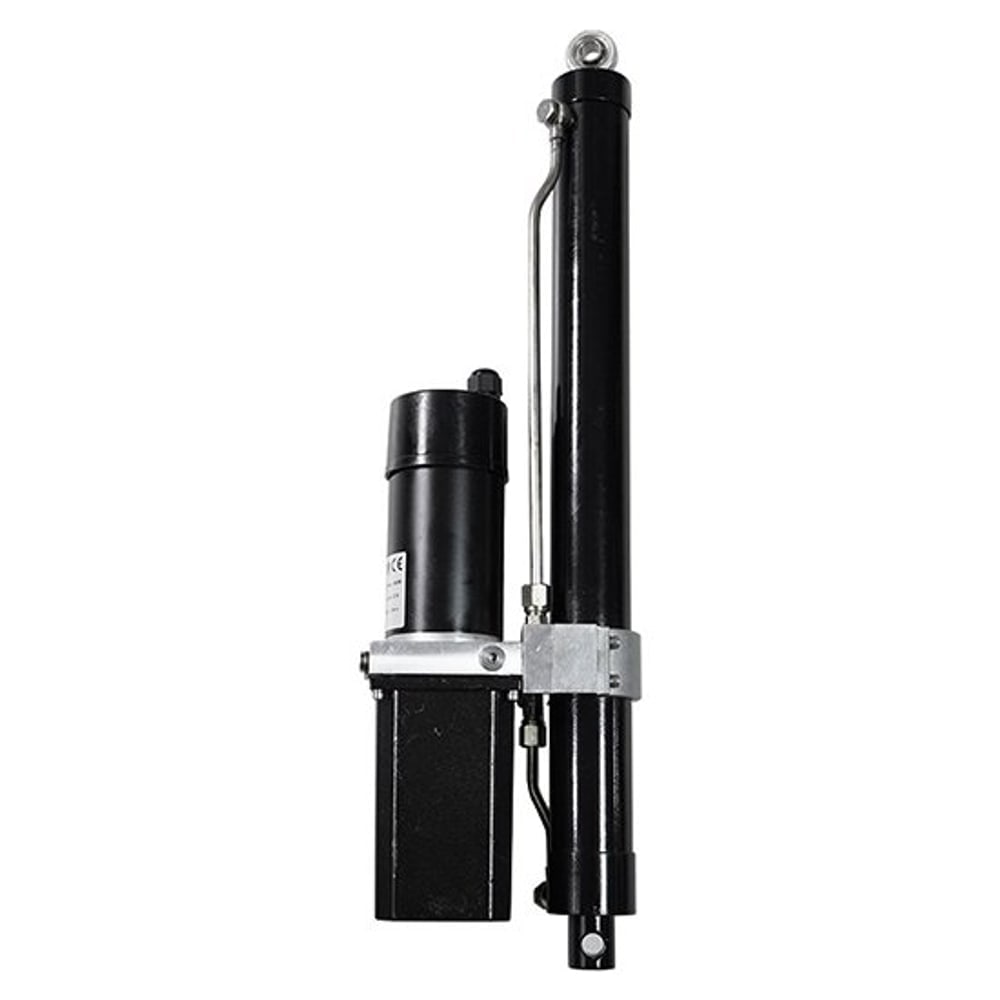

Electric Hydraulic Actuator - SLA-NH32S 12000N load electric hydraulic linear actuator - Detail view 1

Key Features:
High Force Capability: Provides 1.2T jacking force and 0.7T retracting force, ideal for demanding applications.
Integrated Protection Mechanisms: Includes over-current, overload, and overheat protection, along with a hydraulic cylinder two-way pressure self-locking system.
High Stability and Performance: Features a self-locking valve, reversing valve, and over-pressure valve for enhanced stability.
Ease of Use: Ready to use upon connection to a power supply, with no need for additional hydraulic components.
Customizable Options: Pressure output interface and mounting dimensions can be tailored to specific requirements.
Wide Application Range: Suitable for electric tricycles, sanitation vehicles, lifting platforms, assembly lines, industrial robots, agricultural machinery, and industrial automation equipment.
Specifications:
Model: SLA-NH-32S
Input Voltage: 24V / 48V DC
Power: 800W
Stroke Length: Optional 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm (Customizable within 50mm-1000mm range)
Jacking Force: 1.2T
Retracting Force: 0.7T
Speed: 25-26mm/s, 39-40mm/s, 55-56mm/s
Protection Grade: IPx6
Operating Temperature: -30°C to +70°C
Duty Cycle: Long-term continuous use, up to 6 minutes at a time
Certification: CE
Warranty: 1 year
Weight: 5-20 kg

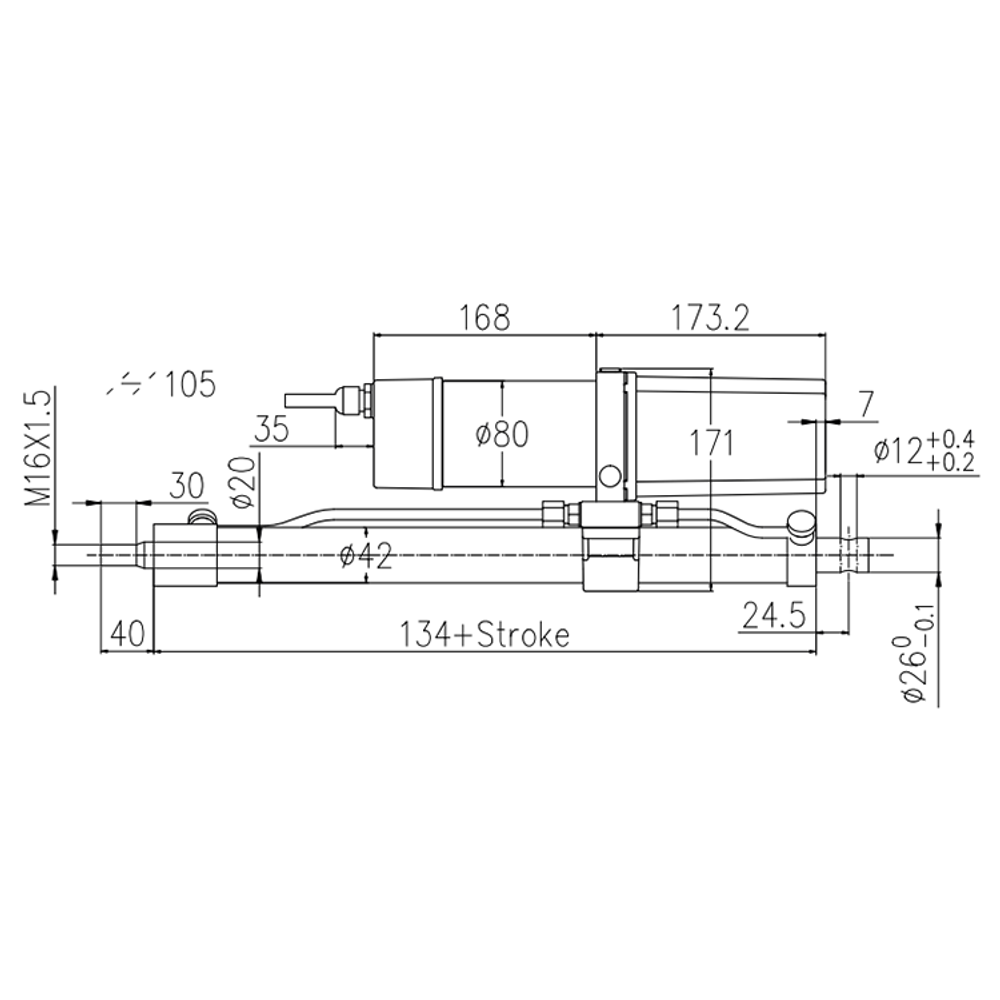

Electric Hydraulic Actuator - SLA-NH32S 12000N load electric hydraulic linear actuator - Detail view 2

* Oil filler plug: The oil is added or replaced from the plug.

* Jacking force adjustment plug: When users unscrew the plug, tighten the nut, the jacking force will increase. When loosening the nut, the force will decrease.
* Retracting force adjustment plug: When users unscrew the plug, tighten the nut, the retracting force increases. When loosening the nut, the force decreases.
* Safety valve: When the piston rod cannot be withdrawn due to unexpected reasons, loosen the safety valve to enable the ejector rod to recover automatically under the action of load force. Be sure to screw it tightly before the next time users use it.

Applications:
Our hydraulic linear actuators are ideal for a variety of applications, including but not limited to:

Electric Tricycles
Sanitation Vehicles
Lifting Platforms
Assembly Lines
Industrial Robots
Agricultural Machinery
Industrial Automation Equipment
Why Choose Our Hydraulic Linear Actuator?
Our hydraulic linear actuators provide a powerful, reliable, and easy-to-install solution for your lifting and automation needs. With high force capabilities, integrated protection mechanisms, and customizable options, they are designed to meet the specific demands of your projects. Whether you need to lift, push, or pull, our actuators offer the performance and durability you need to get the job done efficiently.

Enhance your systems with our high-force hydraulic linear actuators and experience superior performance and reliability. Contact us today to learn more about how our actuators can meet your specific application requirements.
