15MPa محطة هيدروليكية

مشغل كهروهيدروليكي

15MPa محطة هيدروليكية

The 15 MPa Hydraulic Station is an Elerover مشغل كهروهيدروليكي for OEM and industrial motion projects. Key ratings include DC24V / DC48V operation. Request OEM customization for voltage, stroke, feedback and connectors.

Manufactured and supplied by Elerover — مشغل كهروهيدروليكي manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

المعلمات الرئيسية

Model
15 MPa Hydraulic Station
Voltage
DC24V / DC48V
10
Noise level
No
Item
Use
Electric hydraulic actuator power supply
Pressure
15 MPa
Customization
Flow, pressure and reservoir available
Request OEM Quote واتساب
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

نظرة عامة على المنتج

No Item Data 1 Voltage DC24v/DC48v 2 Power 800w 3 Oil Volume 350ml 4 Max Pressure 15MPA 5 Displacement 19ml/S 6 Pump type Bi-directional gear pump 7 Hydraulic Oil L-HV46# 8 waterproof level IPX6 9 Frequency of use Use it continuously for 6 minutes for a long period of time 10 Noise level ＜80DB

الميزات الرئيسية

  • Compact 15 MPa hydraulic power station
  • DC 24V / 48V options for mobile and OEM systems
  • Integrated pump and tank for easy installation
  • Suitable for electric hydraulic actuator supply
  • Stable pressure delivery for industrial duty
  • Custom flow, pressure and reservoir options

المواصفات الفنية

1 Voltage
2 Power
3 Oil Volume
4 Max Pressure
5 Displacement
6 Pump type
7 Hydraulic Oil
8 waterproof level
9 Frequency of use
10 Noise level
No Item
Model 15 MPa Hydraulic Station
Pressure 15 MPa
Voltage DC24V / DC48V
Use Electric hydraulic actuator power supply
Customization Flow, pressure and reservoir available

التطبيقات

  • Electric hydraulic actuators
  • Lifting platforms
  • Industrial OEM systems

تفاصيل إضافية

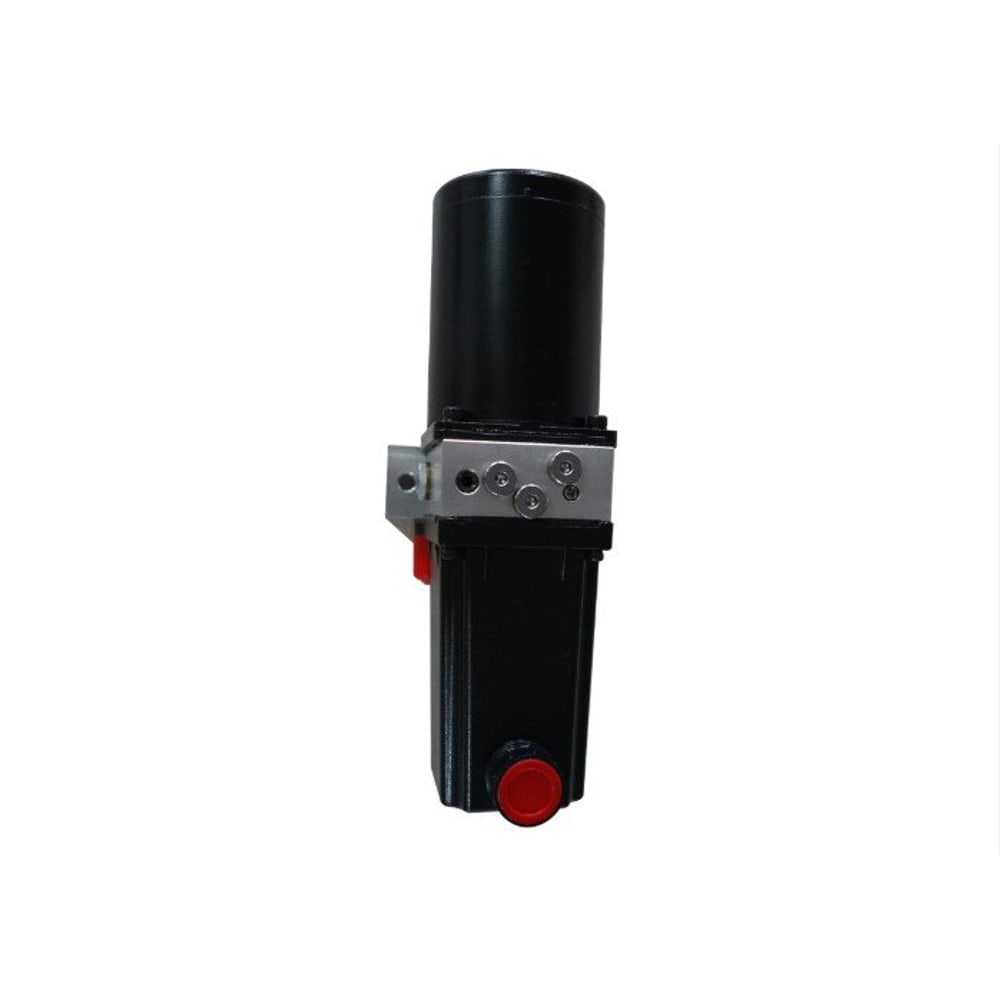

Electric Hydraulic Actuator - 15MPa Hydraulic Station - Detail view 1

Electric Hydraulic Actuator

15MPa Hydraulic Station

No Item Data 1 Voltage DC24v/DC48v 2 Power 800w 3 Oil Volume 350ml 4 Max Pressure 15MPA 5 Displacement 19ml/S 6 Pump type Bi-directional gear pump 7 Hydraulic Oil L-HV46# 8 waterproof level IPX6 9 Frequency of use Use it continuously for 6 minutes for a long period of time 10 Noise level ＜80DB

Need a Custom Configuration?

Contact Elerover for voltage, stroke, speed, feedback, cable length and connector customization. Messages go to [email protected].
