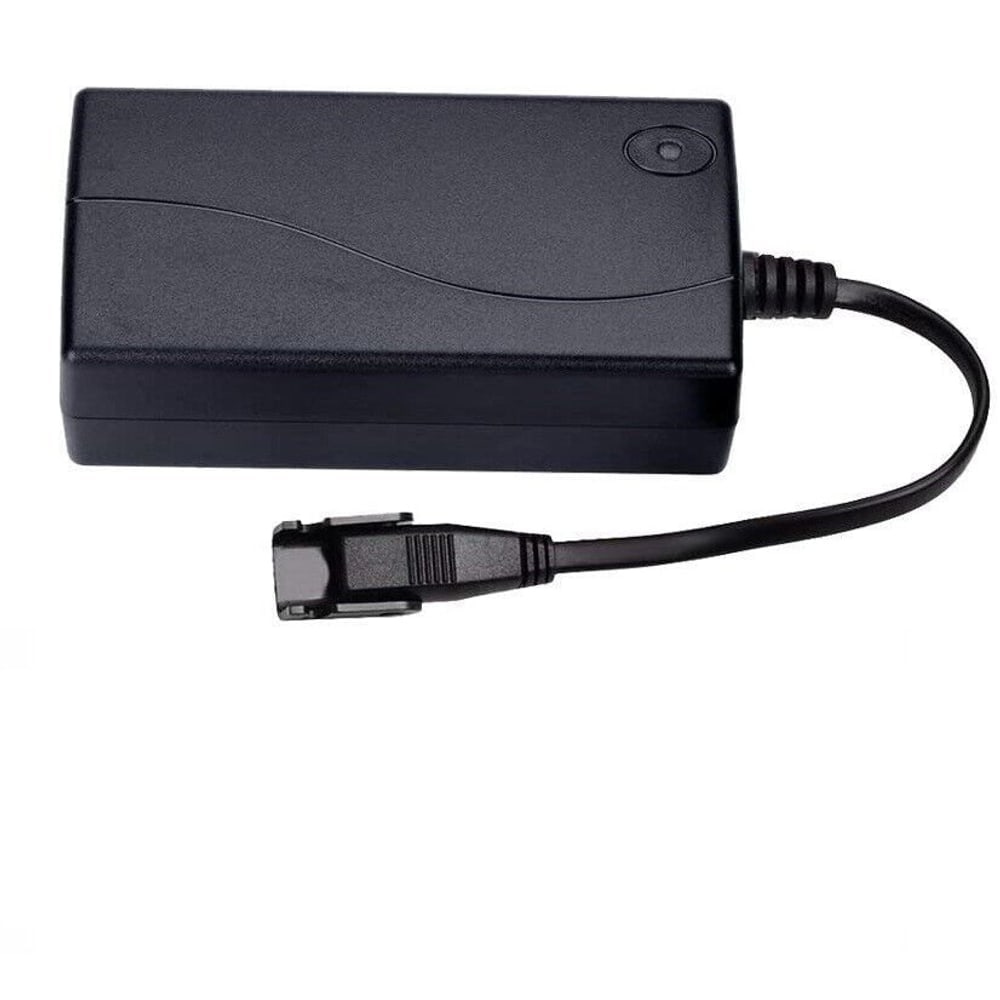

SLA-CX04 جهاز تحكم عن بعد

Synchronous Control System for Two Linear Actuators with Advanced Specifications

Introducing our Synchronous Control System for Two Linear Actuators, an advanced solution designed to provide precise, simultaneous control of two electric linear actuators. This system is perfect for applications requiring synchronized movement, offering both wired and wireless control options for maximum flexibility.

• 🔄 Synchronous Operation: Ensures two electric linear actuators run completely synchronously.

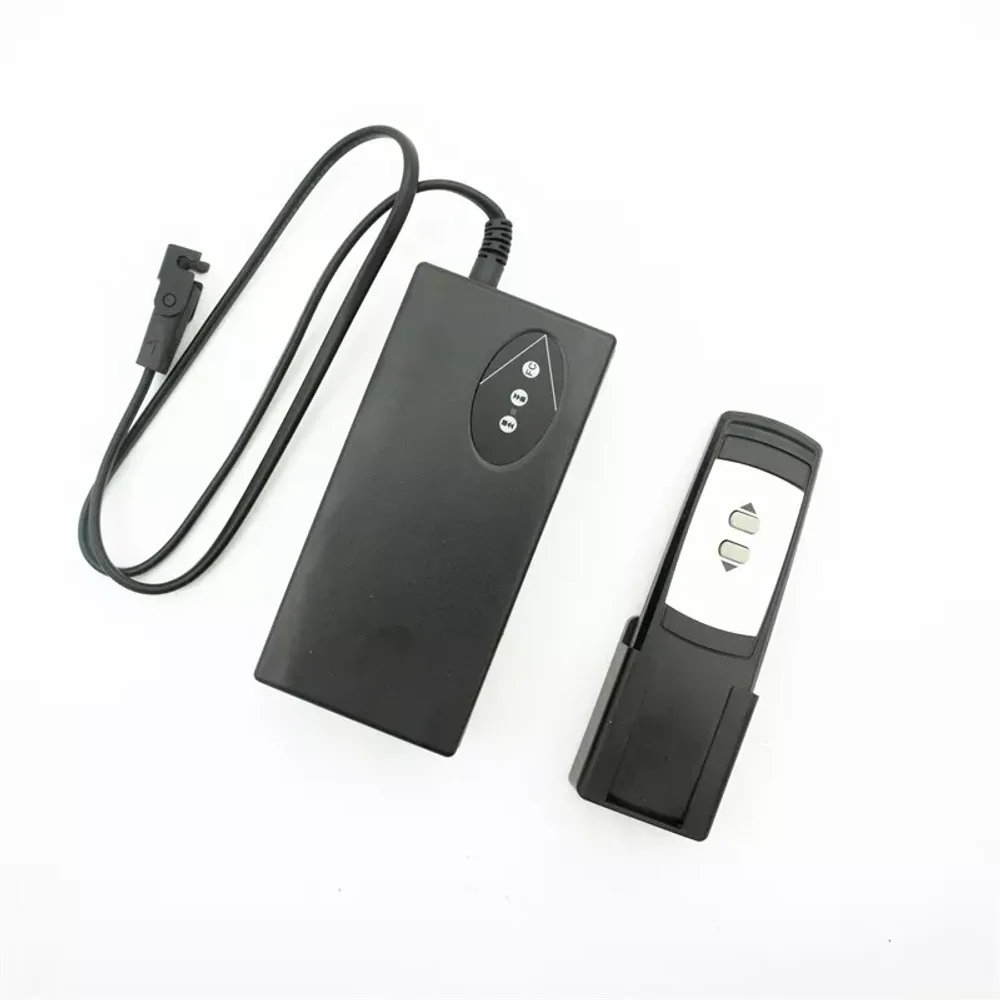

• 🎮 Dual Control Options:
  • Wired Control: Via an intuitive control handle.
  • Wireless Control: Via a convenient remote control.
• 🔘 Simple Functionality: Equipped with two function buttons for Up and Down movements.
• 🔄 Reset Button: Quickly reset the system for easy adjustments.

• ⚡ Input Voltage: AC 110V / 220V 50Hz/60Hz
• ⚡ Maximum Output Voltage: 12V/24V/29V DC
• ⚡ Maximum Output Current: 5A
• ⚡ Maximum Output Power: 120W
• 🔧 Control Mode: Lock/Non-lock (Standard)

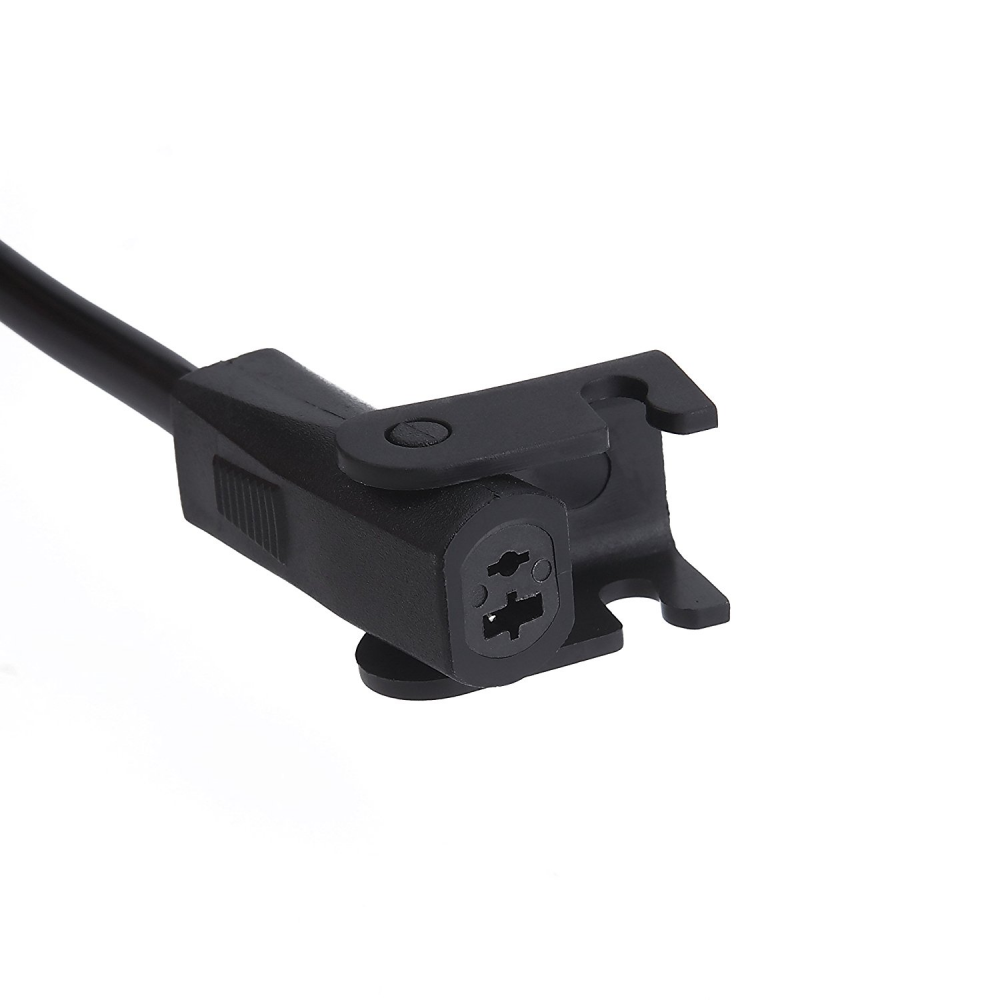

• 🔌 Motor Plug: 2-core plug
• 🔌 Power Plug: 2-core 8-shaped plug
• 🔄 Working Cycle: 10% (2 minutes of work followed by 18 minutes of rest)

Control Modes

• Lock Mode: Press the key once, and the electric push rod will operate through the complete cycle.
• Non-lock Mode: Press and hold the key for continuous operation; release the key to stop.

Connection Instructions

1. Power Connection:
   • Connect the positive pole of the DC power supply to terminal + of the controller.
   • Connect the negative pole of the DC power supply to terminal – of the controller.
2. Actuator Connection:
   • Connect the red and black power cables of the two linear actuators to the linear actuator terminals of the controller.
   • Connect the hall signal cables of the two linear actuators to the hall signal terminals of the controller.

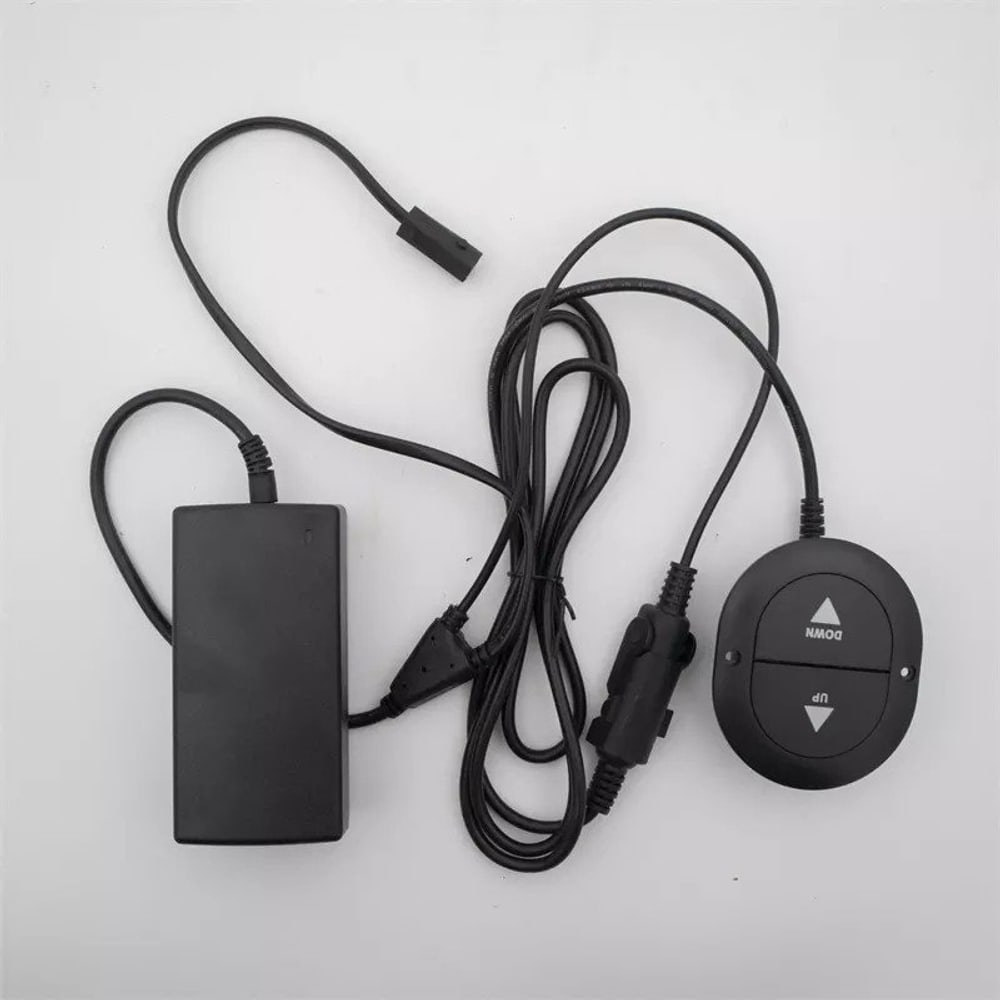

3. Control Handle:
   • Plug the control handle into the controller.

Operation Instructions

Via Control Handle:

1. Extend Actuators:
   • Press the ▲ button to extend both actuators simultaneously. They will reach the maximum stroke and stop automatically.
   • Press the ▼ button at any time to stop both actuators.
2. Retract Actuators:
   • Press the ▼ button to retract both actuators simultaneously. They will fully retract and stop automatically.
   • Press the ▲ button at any time to stop both actuators.

Via Remote Control:

1. Extend Actuators:
   • Press the ▲ button on the remote to extend both actuators simultaneously. They will reach the maximum stroke and stop automatically.
   • Press the ▼ button at any time to stop both actuators.
2. Retract Actuators:
   • Press the ▼ button on the remote to retract both actuators simultaneously. They will fully retract and stop automatically.
   • Press the ▲ button at any time to stop both actuators.

Ideal for a variety of uses, including but not limited to:

• 🏥 Medical Devices
• 🏡 Home Automation Systems
• 🚪 Automotive Applications
• 🏢 Industrial Equipment
• 🖥️ Office Automation
• 🛠️ DIY Projects

Enhance your automation projects with our Synchronous Control System for Two Linear Actuators. Enjoy precise, simultaneous control with both wired and wireless options, ensuring flexibility and ease of use.
